Il Dornier Do 31 fu un aereo da trasporto tattico sperimentale VTOL realizzato dall'azienda tedesca Dornier-Werke alla fine degli anni sessanta e rimasto allo stadio di prototipo.
Il velivolo fu progettato per soddisfare una specifica della NATO (BMR-4) per un aereo da supporto tattico all'aereo da attacco VTOL EWR VJ 101, progettato nell'ambito NATO come BMR-3. Il Do 31 fu il primo, finora l'unico aereo da trasporto a getto a decollo verticale mai costruito.
Storia
Sviluppo
Nei primi anni sessanta la Luftwaffe, preoccupata che le sue basi aeree fossero eccessivamente vulnerabili agli attacchi aerei dal Blocco orientale, cercò attivamente la possibilità di sottrarre le proprie forze aeree a questa minaccia studiando la possibilità di disperderle in basi di fortuna (che potevano includere il decollo da autostrade), emettendo un requisito per aerei con funzionalità STOVL. Parte di queste richieste vennero soddisfatte dagli F-104 Starfighter, modificati con motori a razzo lanciati da rampe stazionarie (in quello che divenne noto come programma ZELL). Gli Starfighter sarebbero stati recuperati usando cavi d'atterraggio simili a quelli delle portaerei. Il Do 31 fu concepito per usare quei cavi.
Quando si accorse degli alti costi, dei problemi tecnici e delle difficoltà logistiche, la Luftwaffe cessò i test riguardanti gli aerei VTOL, tra i quali il Do 31, il VJ101 ed il VFW VAK 191B; ne risultò la cancellazione di questi progetti e del futuro uso di questi aerei in compiti di ricerca.
I progetti iniziali incorporavano motori Bristol Pegasus a spinta vettoriale (lo stesso tipo utilizzato nel caccia Harrier) in ciascuna gondola interna e quattro Rolls-Royce RB162 nelle altre gondole esterne. I due motori Pegasus montati orizzontalmente servivano per il volo livellato e per il decollo verticale (deflettendo il getto verso il basso), mentre gli otto RB162 montati verticalmente servivano solo per il decollo verticale. Venne inoltre pianificato di sostituire questi ultimi non appena fossero stati disponibili i più potenti motori a turboventola Rolls-Royce RB153 da 22 kN di spinta.
In totale, vennero costruiti tre aerei di prova, con l'indicazione E1, E2 e E3 - dove la "E" indicava Experimentell (Sperimentale). L'E1 era mosso solo da un motore Pegasus, e venne progettato per test di volo orizzontale. L'E2 fu testato per la cellula e non volò mai. L'E3 aveva i motori Pegasus e RB162 installati, e fu progettato per voli verticali. Il primo prototipo (E1) volò la prima volta il 10 febbraio 1967 con solo due motori Pegasus. Il secondo prototipo (E3) volò nel luglio 1967 con tutti e dieci i motori installati. Il primo volo ebbe luogo il 22 novembre 1967. Tutte le transizioni in avanti e indietro vennero eseguite nel dicembre 1967.
Impiego operativo
Pur se il programma si rivelò tecnicamente un successo il Do 31 non venne mai impiegato in unità operative ma stabilì diversi record mondiali FAI (Fédération Aéronautique Internationale) durante il suo tragitto allo show aereo di Parigi del 1969. Nel 1970 venne sottoposto alla NASA per valutazioni prima che il programma di sviluppo venisse arrestato, ed in quell'ambito l'astronauta Neil Armstrong, nel ruolo di pilota collaudatore, lo valutò positivo e convincente. In data 31 ottobre 1969 il Bundesamt für Wehrtechnik und Beschaffung (BWB), l'ufficio federale addetto all'approvvigionamento delle tecnologie della difesa, annullò il contratto e la Dornier fu costretta, non trovando alcun partner di sviluppo a cancellare il progetto nell'aprile 1970. Il Do 31 fece il suo ultimo volo pubblico il 4 maggio 1970 durante l'ILA ad Hannover. Uno dei fattori che hanno portato alla conclusione del progetto fu il grande peso del motore ed il suo trascinamento.
Esemplari attualmente esistenti
Entrambi i prototipi volanti vennero conservati in Germania, il destino e l'ubicazione attuale dell'aereo non volante (E2) è sconosciuta:
- Dornier Do 31 E1, D-9530, inizialmente immagazzinato a Oberpfaffenhofen, è in mostra dal Luglio 2009 al Dornier Museum di Friedrichshafen.
- Dornier Do 31 E3, D-9531, inizialmente immagazzinato a Oberpfaffenhofen, è ora in mostra al Deutsches Museum a Schleissheim, vicino a Monaco di Baviera.
ENGLISH
The Dornier Do 31 was an experimental vertical take-off and landing (VTOL) jet-propelled transport designed and produced by West German aircraft manufacturer Dornier.
The development of the Do 31 was motivated principally by heavy interest expressed by the German Air Force in the acquisition of short take-off and vertical landing aircraft (STOVL)-capable aircraft. Such ambitions received a further boost from the issuing of NATO specification NBMR-4, which called for a VTOL-capable tactical support aircraft that would be operated in conjunction with the EWR VJ 101, a West German VTOL strike aircraft designed under the NATO contract of BMR-3. A total of three aircraft, two flight-capable and one static airframe, were constructed and used for testing. On 10 February 1967, the Do 31 performed its maiden flight; the first hovering flight of the type took place during July 1967.
In addition to performing test flights, Dornier often demonstrated the Do 31 prototypes to officials and the general public, such as at the 1969 Paris Air Show. Several world records were set by the type during its limited flying career. When the high cost, technical and logistical difficulties of operating such an aircraft were realized, the German Air Force opted to cease trials involving VTOL aircraft, such as the Do 31, VJ101, and the later VFW VAK 191B. In the face of limited sales prospects and a lack of state support, the Do 31 and other VTOL projects lingered as research projects for a time prior to their manufacturers abandoning all activity. The Do 31 remains the only VTOL-capable jet-powered transport aircraft to ever fly.
Design and development
Background
During the late 1950s and 1960s, the German Air Force became increasingly concerned that, in the event of a major conflict with the Eastern Bloc, its airfields would be highly vulnerable to attack, quickly preventing the use of conventional aircraft in any such conflict. Seeking to counter this threat, the service actively researched the possibility of dispersed operations; one of the options was the use of the nation's Autobahnens, which necessitated such aircraft to possess short take-off and vertical landing aircraft (STOVL) capabilities. Due to this interest, a series of trials were conducted, which involved the modification of several German Air Force Lockheed F-104 Starfighters so that they could be rocket-launched from stationary ramps; these trials became known as the zero length launch (ZELL) programme. The Starfighters were to be recovered to short strips using aircraft carrier-type arresting gear; similarly, the later Do 31 was intended to use these same austere air strips as forward operating bases.
As early as 1959, West German aircraft manufacturer Dornier had been informally working on several VTOL-related concepts, although it would not be until 1961 that the design team would formalise what would become the Do 31. Early activity centred around a series of studies on the topic of a VTOL-capable utility transport aircraft. Dornier's design team, based at the company's facility in Friedrichshafen, was headed by the aeronautical engineer Gustav Wieland. Already at this stage, Dornier was liaising with foreign companies, including British engine manufacturer Bristol Siddeley, who were independently working on their own VTOL-orientated engine already.
The design of the flight control system was considered to be a critical element of any aircraft performing vertical flight, particularly in how it handled control failures. To support the development programme, a purpose-built flight control test rig was constructed by Dornier, which allowed their design team to explore and evaluate different attitude control laws and flying qualities. To solve the differential equations necessary to model the aircraft in detail, the Dornier DO-960 hybrid computer was developed. In spite of allowances to facilitate control during vertical flight, the flight control philosophy used upon the Do 31 was more akin to a conventional aircraft than that of a helicopter.
Programme launch and design
During February 1962, the formal launch of the Do 31 programme occurred with the issuing of a development contract from the West German government. By the start of 1964, Dornier had started building a pair of prototype aircraft; their manufacture was largely performed at the company's Oberpfaffenhofen plant. A total of three test prototypes were constructed, these being E1, E2 and E3 - the "E" indicating Experimentell (Experimental). E1 was powered only by the Pegasus engines, having been designed to test horizontal flight. E2 was a static test airframe, and did not ever fly. E3 was furnished with both Pegasus and RB162 lift engines installed, being intended to evaluate the design's vertical flight mode.
The design of the Do 31 was heavily reliant upon its engine configuration. Dornier had opted to incorporate the British-built Bristol Pegasus vectored-thrust turbofan engine, an existing powerplant that was most famously used to power the Harrier Jump Jet. On the Do 31, a pair of Pegasus engines were housed in each of the two inboard nacelles; during the vertical phase of flight, additional lift was provided by an arrangement of four vertically mounted Rolls-Royce RB162 lift engines located in each of the outer nacelles.
By mounting the engines in pods, the fuselage could accommodate a capacious hold for storing cargo, which was primarily accessed via a rear-facing loading ramp. Early designs of the Do 31 used more than four Rolls-Royce RB162s; the availability of more powerful versions of the Pegasus engine enabled the reduction to four supplemental lift engines. Due to the engines being placed in nacelles, as opposed to within the fuselage as on the Harrier, the Pegasus had to be specially modified for the Do 31.
Beyond providing adequate lift and control, other factors influenced the propulsion system. According to Dow, noise was a considerable concern, particularly as the airframe's critical frequency was close to that which was naturally generated by the lift engines. The re-ingestion of hot exhaust gasses was another critical area, complicated by there being 16 'fountains' of gas being generated during vertical hover, 12 of which being hot. Following intense study during the flight testing phase of development, it was determined that positioning the nozzles at an angle of 85-degrees, rather than 90-degrees, was sufficient to avoid encountering any issue during takeoff, while no such issues were observed during landings at all. Several different types of air intakes were also trialled, both to deter ingestion issues and the uneven start-up of the lift engines. Bleed air was also drawn from the Pegasus engines to the lift engines as a measure to address ingestion issues, while dedicated studies were performed on ground erosion effects.
Into flight

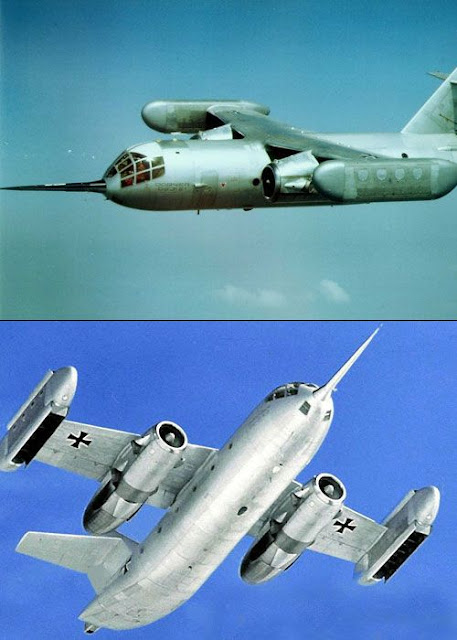

On 10 February 1967, the first prototype (E1) conducted its maiden flight, powered by just the two Pegasus engines. During July 1967, the third prototype (E3), which was furnished with all ten of its engines, performed the first hovering flight. During December 1967, forward-and-backward transitions between vertical and horizontal phases of flight were successfully conducted. On 28 February 1968, the first flight involving multiple transitions was performed. According to aviation author Andrew Dow, while some initial teething issues were encountered, confidence in the aircraft grew quickly. As the flight envelope was explored, test pilot Drudy Wood performed several exploratory manoeuvres while flying the Do 31, on one occasion deliberately flying it backwards to prove it could be done and performing a barrel roll on another.
Seeking to garner publicity for its new aircraft, Dornier flew the one of the prototypes to the 1969 Paris Air Show, where it was demonstrated to the general public. The ferry flight to reach the event established multiple Fédération Aéronautique Internationale (FAI) world records for the type. Public recognition was viewed as particularly valuable in light of Dornier's long-term ambitions for the Do 31, as the company foresaw civilian uses for the aircraft as a commercial VTOL transport. At one point, Dornier was negotiating with both Douglas Aircraft and Ling-Temco-Vought (LTV) for involvement in the Do 31 programme, even rejecting one approach made by Douglas.
The Do 31 was the first, and so far only, vertical takeoff jet transport ever built. During April 1970, it was announced that the project had been terminated, although the Do 31 performed its final public flight on 4 May 1970 during the Internationale Luft- und Raumfahrtausstellung (ILA) in Hannover. One of the alleged contributing factors towards the Do 31's cancellation was the relatively large drag and weight imposed by the lift engine pods, which reduced both the useful payload and range of the type compared to conventional transport aircraft. According to Dow, the German government had been frustrated by a lack of commitment forthcoming from other NATO countries, and was unwilling to contribute alone to the high funding requirement needs for full-scale development.
During a later stage of development, Dornier planned to dispense with the Do 31's outer nacelles and their engines; in their place, larger RB153 turbofan engines, each capable of generating approximately 5,000 lbf (22 kN) of thrust, would have been adopted once this powerplant had become available. A further development of the Do 31, referred to as the Do 131, intended to be powered by either twelve or fourteen liftjets, was also explored by Dornier; however, no prototype of this variant was ever constructed.
Aircraft on display
Both flying prototypes have been preserved in Germany, but the fate and current location of the non-flying testbed (E2) is not known.

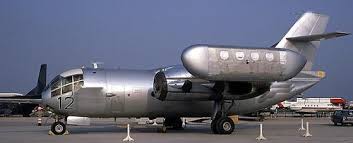

Dornier Do 31 E1, D-9530, is preserved and displayed at the Dornier Museum Friedrichshafen.
Dornier Do 31 E3, D-9531, was initially put into storage at Oberpfaffenhofen, then for several years on display in the open in the courtyard of the Deutsches Museum in Munich and after restoration is now on display at the Deutsches Museum Flugwerft Schleissheim at Oberschleissheim near Munich.
Operators:
- Germany - German Air Force (Luftwaffe)

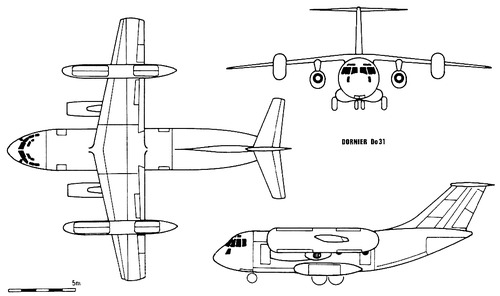

Specifications (Do 31)
General characteristics:
- Crew: 2
- Capacity: 36 fully-equipped troops / 24 stretchers / 3,000–5,000 kg (6,600–11,000 lb) payload
- Length: 20.88 m (68 ft 6 in)
- Wingspan: 18.06 m (59 ft 3 in)
- Height: 8.53 m (28 ft 0 in)
- Wing area: 57 m2 (610 sq ft)
- Airfoil: root: NACA 64A412.5; tip: NACA 64A410
- Empty weight: 49,500 kg (109,129 lb)
- Max takeoff weight: 60,500 kg (133,380 lb)
- Fuel capacity: 8,000 l (2,100 US gal; 1,800 imp gal) in five integral wing tanks
- Powerplant: 2 × Rolls-Royce BE.53/2 Pegasus 5-2 vectored thrust turbofans, 69 kN (15,500 lbf) thrust each in underwing pods
- Powerplant: 8 × Rolls-Royce RB.162-4D turbojet engines, 20 kN (4,400 lbf) thrust each vertically mounted in wing-tip pods.
Performance:
- Maximum speed: 730 km/h (450 mph, 390 kn)
- Cruise speed: 650 km/h (400 mph, 350 kn) at 6,000 m (20,000 ft)
- Range: 1,800 km (1,100 mi, 970 nmi) with maximum payload
- Service ceiling: 10,700 m (35,100 ft)
- Rate of climb: 26.667 m/s (5,249.4 ft/min) all engines
- 19.2 m/s (3,780 ft/min) Pegasus engines only.
