SI VIS PACEM, PARA BELLUM: Una proposta indecente: """Perché non riesumare il fantastico Northrop-McDonnell Douglas YF-23 Black Widow II?"""

Il Northrop-McDonnell Douglas YF-23 Black Widow II era il velivolo proposto dal consorzio Northrop/McDonnell Douglas per il concorso ATF (Advanced Tactical Fighter) indetto dall'United States Air Force, l'aeronautica militare statunitense.

Un po' di elettronica allo stato dell'arte, due motori F135 dello stealth F35, un po' di sviluppo e.... ....un caccia fantastico!

Nel 2004, Northrop Grumman ha proposto un bombardiere basato su YF-23 per soddisfare l'esigenza dell'USAF di un bombardiere provvisorio, per il quale erano in competizione anche FB-22 e B-1R. L'aereo Northrop ha modificato il PAV-2 per servire da modello espositivo per il bombardiere provvisorio proposto. La possibilità di un bombardiere provvisorio basato sull'YF-23 si è conclusa con la Quadrennial Defense Review del 2006, che ha favorito un bombardiere a lungo raggio con una portata molto maggiore. Da allora l'USAF è passato al programma Bomber di prossima generazione.

Il Giappone emanò un programma per sviluppare un caccia nazionale di 5/6a generazione (F-3) dopo che il Congresso USA aveva rifiutato nel 1998 di esportare l'F-22. Dopo molti studi e la costruzione di modelli statici, il velivolo Mitsubishi X-2 Shinshin ha volato come dimostratore tecnologico a partire dal 2016. Entro luglio 2018, il Giappone aveva raccolto sufficienti informazioni e decise che avrebbe dovuto portare a bordo partner internazionali per completare questo progetto. Una di queste società che aveva risposto era la Northrop Grumman che aveva offerto al Giappone una versione modernizzata dell'YF-23.

Dal concorso emerse vincitore l'YF-22, prototipo dell'F-22 Raptor, entrato in servizio alla fine del dicembre 2005.

Il programma ATF fu concepito nei primi anni ottanta per definire un successore dell'F-15 Eagle: nel 1986 vennero assegnati due contratti ai progetti giudicati più promettenti per la realizzazione di una coppia di velivoli ciascuno che sarebbero stati confrontati successivamente durante la fase dimostrativa. L'altro consorzio selezionato fu quello costituito da Lockheed/Boeing/General Dynamics, il cui prototipo era designato YF-22 e finì per aggiudicarsi nel 1991 la commessa, che in principio prevedeva la realizzazione di 648 velivoli.

Il primo prototipo dell'YF-23 (PAV-1, soprannominato "Spider" ed equipaggiato con motori Pratt & Whitney YF119) venne completato nel 1989 e volò il 27 agosto 1990, con un mese circa di anticipo rispetto all'YF-22, con il capo collaudatore Paul Metz ai comandi. Il secondo prototipo (PAV-2, detto "Gray Ghost" e propulso da una coppia di General Electric YF120) volò il 26 ottobre con il pilota Jim Sandberg. I voli di test, per un totale di 65 ore, si protrassero fino al 18 dicembre. A parte i due già citati della Northrop, altri 3 piloti si alternarono durante le 50 missioni: Bill Lowe (McDonnel Douglas), Ronald Johnston (USAF AFFTC), Con Thueson (USAF AFOTEC).

Nell'aprile 1991 il segretario dell'aeronautica Donald Rice annunciò il vincitore, ovvero l'accoppiata YF-22/YF119. Alla fine della fase dimostrativa, i due prototipi vennero consegnati dalla Northrop al Dryden Flight Research Center della NASA, dove rimasero inutilizzati fino al 1996, anno nel quale vennero trasferiti ai musei.

Il PAV-1 è stato restaurato recentemente presso il museo USAF di Dayton (Ohio); il PAV-2, dopo essere stato per anni esposto al Western Museum of Flight di Hawthorne (California) in condizioni di rapido deterioramento, è stato rimesso a nuovo negli stabilimenti Northrop Grumman di El Segundo e poi restituito alla nuova sede del museo nell'aeroporto di Torrance.

Ideato da Bob Sandusky, l'YF-23 era un aereo dalle linee non convenzionali, caratterizzato in pianta da una forma trapezoidale e da piani di coda "a V" completamente mobili, che assolvevano sia le funzioni di controllo sull'asse di imbardata con movimento anti-simmetrico, che quelle sull'asse di beccheggio con movimento simmetrico. Il controllo sull'asse di rollio veniva invece demandato all'azione differenziale delle 4 superfici sul bordo di uscita delle semiali, dette flaperon, che compensavano anche il momento indotto dalla coda sull'asse longitudinale durante l'imbardata. Il freno aerodinamico veniva generato muovendo verso il basso i flaperon interni e verso l'alto quelli esterni, o viceversa. Tutte le superfici erano controllate dal sistema VMS (Vehicle Management System) digitale a quadrupla ridondanza con funzioni di controllo e aumento della stabilità.

Le prese d'aria dei motori erano situate sotto le semiali, poco dietro il bordo di attacco, e i condotti a forma di S che convogliavano il flusso ai propulsori permettevano di schermare frontalmente il compressore per migliorare le caratteristiche stealth. Gli scarichi erano posti sulla parte superiore della fusoliera, muniti di tunnel di uscita ricoperti di materiale ceramico che consentiva di abbassare la temperatura di uscita dei gas dalla turbina, mascherando la traccia infrarossa.

L'YF-23 rispondeva in pieno ai requisiti USAF, come ebbe a dichiarare lo stesso Rice[4], per quanto riguarda le caratteristiche di supercrociera (volo supersonico senza l'ausilio dei postbruciatori), invisibilità radar, capacità di sopravvivenza e facilità di manutenzione. Inoltre, a quanto si sa, l'YF-23 si era dimostrato superiore all'YF-22 in termini di velocità (particolarmente il prototipo con i motori YF120), capacità di carico, autonomia e furtività.

Era però meno manovrabile dell'YF-22, che dalla sua aveva la possibilità di controllo vettoriale della spinta, ed inoltre il sistema di stivaggio dei missili nell'unico vano ventrale destava qualche perplessità, poiché un guasto nel meccanismo di sgancio di uno di questi avrebbe compromesso l'utilizzo delle armi restanti (di fatto l'YF-23, al contrario del suo rivale, non effettuò mai il lancio di armi nella fase dimostrativa). Quello che penalizzò maggiormente l'YF-23 fu il fatto che fosse poco più di un dimostratore di tecnologia: l'avionica prevista non era installata nella carlinga dei prototipi, anche se fu testata su un velivolo BAC 111 che fungeva da banco di prova; il carrello anteriore era quello dell'F-15, quello principale mutuato dall'F-18, le gondole motrici non vennero ridisegnate quando fu eliminato il requisito dell'inversore di spinta. Tutto questo diede all'USAF l'impressione che l'YF-22 fosse più vicino allo standard di produzione e quindi il suo sviluppo sarebbe stato meno oneroso.

In ogni caso, la scelta dell'YF-22 è stata molto controversa ed è probabilmente da attribuirsi anche al fatto che all'epoca la Northrop era sotto pressione per i ritardi ed i costi del progetto del bombardiere B-2, mentre la Lockheed si era distinta bene nella gestione del programma F-117. L'YF-23, come anche il turboventola a ciclo variabile YF120, essendo un progetto estremamente innovativo costituiva un'opzione più rischiosa per l'USAF, che preferì non sottovalutare i costi industriali connessi.

ENGLISH

The Northrop/McDonnell Douglas YF-23 is an American single-seat, twin-engine stealth fighter aircraft technology demonstrator designed for the United States Air Force (USAF). The design was a finalist in the USAF's Advanced Tactical Fighter (ATF) competition, battling the Lockheed YF-22 for a production contract. Two YF-23 prototypes were built, nicknamed "Black Widow II" and "Gray Ghost".

In the 1980s, the USAF began looking for a replacement for its fighter aircraft, especially to counter the USSR's advanced Sukhoi Su-27 and Mikoyan MiG-29. Several companies submitted design proposals; the USAF selected proposals from Northrop and Lockheed. Northrop teamed with McDonnell Douglas to develop the YF-23, while Lockheed, Boeing and General Dynamics developed the YF-22.

The YF-23 was stealthier and faster, but less agile than its competitor. After a four-year development and evaluation process, the YF-22 was announced the winner in 1991 and entered production as the Lockheed Martin F-22 Raptor. The U.S. Navy considered using the production version of the ATF as the basis for a replacement to the F-14, but these plans were later canceled. The two YF-23 prototypes were museum exhibits as of 2010.

Development

American reconnaissance satellites first spotted the advanced Soviet Su-27 and MiG-29 fighter prototypes in 1978, which caused concern in the U.S. Both Soviet models were expected to reduce the maneuverability advantage of contemporary US fighter aircraft. In 1981, the USAF requested information from several aerospace companies on possible features for an Advanced Tactical Fighter (ATF) to replace the F-15 Eagle. After discussions with aerospace companies, the USAF made air-to-air combat the primary role for the ATF. The ATF was to take advantage of emerging technologies, including composite materials, lightweight alloys, advanced flight-control systems, more powerful propulsion systems, and stealth technology. In October 1985, the USAF issued a request for proposal (RFP) to several aircraft manufacturers. The RFP was modified in May 1986 to include evaluation of prototype air vehicles from the two finalists. At the same time, the U.S. Navy, under the Navalized Advanced Tactical Fighter (NATF) program, announced that it would use a derivative of the ATF winner to replace its F-14 Tomcat. The NATF program called for procurement of 546 aircraft along with the USAF's planned procurement of 750 aircraft.

In July 1986, proposals were submitted by Lockheed, Boeing, General Dynamics, McDonnell Douglas, Northrop, Grumman and Rockwell. The latter two dropped out of competition shortly thereafter. Following proposal submissions, Lockheed, Boeing, and General Dynamics formed a team to develop whichever of their proposed designs was selected, if any. Northrop and McDonnell Douglas formed a team with a similar agreement. The Lockheed and Northrop proposals were selected as finalists on 31 October 1986. Both teams were given 50 months to build and flight-test their prototypes, and they were successful, producing the Lockheed YF-22 and the Northrop YF-23.

The YF-23 was designed to meet USAF requirements for survivability, supercruise, stealth, and ease of maintenance. Supercruise requirements called for prolonged supersonic flight without the use of afterburners. Northrop drew on its experience with the B-2 Spirit and F/A-18 Hornet to reduce the model's susceptibility to radar and infrared detection. The USAF initially required the aircraft to land and stop within 2,000 feet (610 m), which meant the use of thrust reversers on their engines. In 1987, the USAF changed the runway length requirement to 3,000 feet (910 m), so thrust reversers were no longer needed. This allowed the aircraft to have smaller engine nacelle housings. The nacelles were not downsized on the prototypes.

The first YF-23 (serial number 87-0800), Prototype Air Vehicle 1 (PAV-1), was rolled out on 22 June 1990; PAV-1 took its 50-minute maiden flight on 27 August with Alfred "Paul" Metz at the controls. The second YF-23 (serial number 87-0801, PAV-2) made its first flight on 26 October, piloted by Jim Sandberg. The first YF-23 was painted charcoal gray and was nicknamed "Black Widow II", after the Northrop P-61 Black Widow of World War II. It briefly had a red hourglass marking resembling the marking on the underside of the black widow spider before Northrop management had it removed. The second prototype was painted in two shades of gray and nicknamed "Spider" and "Gray Ghost".

Design

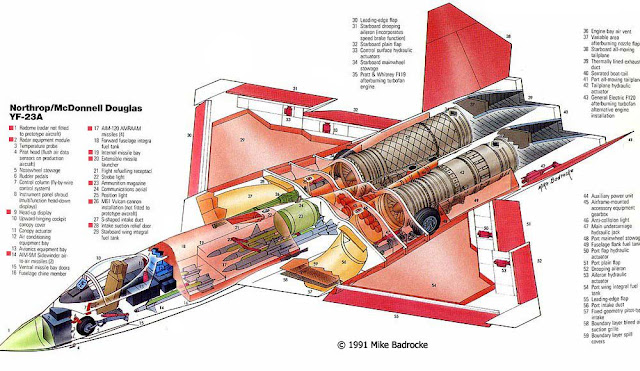

The YF-23 was an unconventional-looking aircraft, with diamond-shaped wings, a profile with substantial area-ruling to reduce aerodynamic drag at transonic speeds, and an all-moving V-tail. The cockpit was placed high, near the nose of the aircraft for good visibility for the pilot. The aircraft featured a tricycle landing gear configuration with a nose landing gear leg and two main landing gear legs. The weapons bay was placed on the underside of the fuselage between the nose and main landing gear. The cockpit has a center stick and side throttle.

It was powered by two turbofan engines with each in a separate engine nacelle with S-ducts, to shield engine axial compressors from radar waves, on either side of the aircraft's spine. Of the two aircraft built, the first YF-23 (PAV-1) was fitted with Pratt & Whitney YF119 engines, while the second (PAV-2) was powered by General Electric YF120 engines. The aircraft featured fixed engine nozzles, instead of thrust vectoring nozzles as on the YF-22. As on the B-2, the exhaust from the YF-23's engines flowed through troughs lined with heat-ablating tiles to dissipate heat and shield the engines from infrared homing (IR) missile detection from below.

The flight control surfaces were controlled by a central management computer system. Raising the wing flaps and ailerons on one side and lowering them on the other provided roll. The V-tail fins were angled 50 degrees from the vertical. Pitch was mainly provided by rotating these V-tail fins in opposite directions so their front edges moved together or apart. Yaw was primarily supplied by rotating the tail fins in the same direction. Test pilot Paul Metz stated that the YF-23 had superior high angle of attack (AoA) performance compared to legacy aircraft. Deflecting the wing flaps down and ailerons up on both sides simultaneously provided for aerodynamic braking. To keep costs low despite the novel design, a number of "commercial off-the-shelf" components were used, including an F-15 nose wheel, F/A-18 main landing gear parts, and the forward cockpit components of the F-15E Strike Eagle.

Operational history

Evaluation

The first YF-23, with Pratt & Whitney engines, supercruised at Mach 1.43 on 18 September 1990, while the second, with General Electric engines, reached Mach 1.6 on 29 November 1990. By comparison, the YF-22 achieved Mach 1.58 in supercruise. The YF-23 was tested to a top speed of Mach 1.8 with afterburners and achieved a maximum angle-of-attack of 25°. The maximum speed is classified, though sources state a maximum speed greater than Mach 2 at altitude and a supercruise speed greater than Mach 1.6. The aircraft's weapons bay was configured for weapons launch, and used for testing weapons bay acoustics, but no missiles were fired; Lockheed fired AIM-9 Sidewinder and AIM-120 AMRAAM missiles successfully from its YF-22 demonstration aircraft. PAV-1 performed a fast-paced combat demonstration with six flights over a 10-hour period on 30 November 1990. Flight testing continued into December. The two YF-23s flew 50 times for a total of 65.2 hours. The tests demonstrated Northrop's predicted performance values for the YF-23. The YF-23 was stealthier and faster, but the YF-22 was more agile.

The two contractor teams submitted evaluation results with their proposals in December 1990, and on 23 April 1991, Secretary of the Air Force Donald Rice announced that the YF-22 was the winner. The Air Force selected the YF119 engine to power the F-22 production version. The Lockheed and Pratt & Whitney designs were rated higher on technical aspects, were considered lower risks, and were considered to have more effective program management. It has been speculated in the aviation press that the YF-22 was also seen as more adaptable to the Navy's NATF, but by 1992 the U.S. Navy had abandoned NATF.

Following the competition, both YF-23s were transferred to NASA's Dryden Flight Research Center at Edwards AFB, California, without their engines. NASA planned to use one of the aircraft to study techniques for the calibration of predicted loads to measured flight results, but this did not take place.

Possible revival

In 2004, Northrop Grumman proposed a YF-23-based bomber to meet a USAF need for an interim bomber, for which the FB-22 and B-1R were also competing. Northrop modified aircraft PAV-2 to serve as a display model for its proposed interim bomber. The possibility of a YF-23-based interim bomber ended with the 2006 Quadrennial Defense Review, which favored a long-range bomber with much greater range. The USAF has since moved on to the Next-Generation Bomber program.

Japan launched a program to develop a domestic 5th/6th generation (F-3) fighter after the US Congress refused in 1998 to export the F-22. After a great deal of study and the building of static models, the Mitsubishi X-2 Shinshin testbed aircraft flew as a technology demonstrator from 2016. By July 2018, Japan had gleaned sufficient information, and decided that it would need to bring on-board international partners to complete this project. One such company that responded was Northrop Grumman and there is speculation that it could offer a modernized version of the YF-23 to Japan.

Aircraft on display

Both YF-23 airframes remained in storage until mid-1996, when the aircraft were transferred to museums.

YF-23A PAV-1, Air Force serial number 87-0800, registration number N231YF, is on display in the Research and Development hangar of the National Museum of the United States Air Force near Dayton, Ohio.

YF-23A PAV-2, AF ser. no. 87-0801, registration number N232YF, was on exhibit at the Western Museum of Flight until 2004, when it was reclaimed by Northrop Grumman and used as a display model for a YF-23-based bomber. PAV-2 was returned to the Western Museum of Flight and was on display as of 2010 at the museum's new location at Zamperini Field, Torrance, California.

Specifications (YF-23)

General characteristics:

Crew: 1
Length: 67 ft 5 in (20.55 m)
Wingspan: 43 ft 7 in (13.28 m)
Height: 13 ft 11 in (4.24 m)
Wing area: 900 sq ft (84 m2)
Empty weight: 29,000 lb (13,154 kg)
Gross weight: 51,320 lb (23,278 kg)
Max takeoff weight: 62,000 lb (28,123 kg)
Powerplant: 2 × Pratt & Whitney YF119 or General Electric YF120 afterburning turbofan engines, 35,000 lbf (160 kN) with afterburner.
