Il GAM-87/AGM-48 Skybolt era un missile balistico aviolanciato ALBM (Air-Launched Ballistic Missile) nucleare prodotto dalla Douglas.

Storia

In conseguenza di studi effettuati nel 1958 che affermavano la fattibilità del lancio di missili balistici nucleari da bordo di aerei in alta quota, venne commissionata nel 1959 una fornitura alla Douglas di missili da utilizzare sui B-52H Statofortress americani. In piena guerra fredda, nell'ambito degli accordi di collaborazione sulle tecnologie strategiche, si unì al programma la RAF programmando l'utilizzo di questi sistemi d'arma sugli Avro Vulcan. Nel gennaio 1961 iniziarono i test, ma dopo i primi cinque lanci falliti il programma venne cancellato nel dicembre 1962, proprio in concomitanza con il primo lancio riuscito, lasciando senza un programma di grande interesse sia l'USAF che la RAF, che per esso aveva rinunciato allo sviluppo autonomo del Blue Streak. Il presidente John Kennedy cancellò il programma seguendo le raccomandazioni del segretario alla difesa Robert McNamara, creando una crisi dei rapporti USA-Regno Unito, non ottemperando agli accordi presi in precedenza dal presidente Eisenhower e relativi allo fornitura di tecnologie nucleari ai britannici. La tensione fu tuttavia sanata grazie all'accordo di Nassau stipulato con Harold Macmillan, che prevedeva la fornitura da parte degli Stati Uniti al Regno Unito di missili a testata nucleare del tipo UGM-27 Polaris per compensare della fine del precedente programma congiunto.

Tecnica

Il missile era stato realizzato in una configurazione a due stadi a propellente solido. Il primo stadio aveva il controllo di traiettoria basato sull'utilizzo degli stabilizzatori, il secondo stadio aveva la guida basata sulla orientazione dell'ugello del motore a razzo. Il B-52H poteva imbarcare quattro Skybolt montati sotto i piloni alari. Al missile, in previsione dell'aggancio all'ala del bombardiere, veniva montato un cono aerodinamico a copertura dei suoi stabilizzatori, che serviva a ridurre l'effetto di freno aerodinamico sull'aereo vettore. Al momento del lancio, il missile veniva sganciato dall'ala del aereo, perdeva il cono aerodinamico e accendeva il primo stadio. Al termine dell'accensione del secondo stadio, l'arma assumeva una traiettoria balistica che la portava ad avere una portata dichiarata di 1850 km. Il progetto prevedeva l'utilizzo di un modulo di rientro Mk.7 con a bordo una testata nucleare W59 da 1,2 megatoni. Alcuni test continuarono anche dopo la cancellazione del programma e il missile venne designato XAGM-48A. Ne vennero costruiti meno di 100 esemplari.

ENGLISH

The Douglas GAM-87 Skybolt (AGM-48 under the 1962 Tri-service system) was an air-launched ballistic missile (ALBM) developed by the United States during the late 1950s. The basic concept was to allow US strategic bombers to launch their weapons from well outside the range of Soviet defenses, as much as 1,000 miles (1,600 km) from their targets. To do this in an air-launched form, a lightweight thermonuclear warhead was needed. Initially, the W47 from the Polaris missile was selected, but it was later replaced by the W59 from the Minuteman missile.

The UK joined the Skybolt program in 1960, intending to use it on their V bomber force. When the design added a star tracker in addition to its inertial navigation system (INS) this meant that it could only be carried externally (where the tracker could see the sky) and the requirement for adequate ground clearance on takeoff limited it to the Avro Vulcan bomber. A number of design decisions in the W47 led the RAF to question its safety, so they intended to use their own Red Snow warheads. This was a heavier warhead and would reduce the range to about 600 miles (970 km), meaning the bombers would have to cross the Soviet coastline to attack Moscow.

Testing began in 1962 and was initially marked by a string of failures. These failures, along with a lack of mission after the successful development of submarine-launched ballistic missiles (SLBMs), led to its cancellation in December 1962. The UK had decided to base its entire 1960s deterrent force on Skybolt, and its cancellation led to a major disagreement between the UK and US, known today as the "Skybolt Crisis". This was resolved by a series of meetings that led to the Royal Navy gaining the UGM-27 Polaris missile and construction of the Resolution-class submarines to launch them.

History

Background

The US Air Force had built up an enormous fleet of strategic bombers during the 1950s, only to see them threatened by the possibility of a surprise attack by Soviet ICBMs. As the US bombers were located at only a small number of air bases, a relatively small fleet of missiles could attack them all. The US had been developing its own ICBMs but early models like the SM-65 Atlas required some time to prepare to launch from their surface launchers and open to sneak air attack. A carefully timed attack from bombers against US missiles and missiles against US bombers could inflict serious damage.

The one weapon system that was not open to attack was the US Navy's Polaris missile system. The Polaris submarines could cruise in large areas of the Atlantic or Pacific where the Soviet fleet was unable to find them, and launch their missiles with impunity. If the goal of the nuclear force was to maintain deterrence by ensuring that a counterstrike would be launched, Polaris met this goal in a way the existing Air Force fleet could not. This fact was more worrying to the Air Force than the Soviet arsenal and generated a number of internal reports on how to deal with this threat to their dominance in the strategic field.

WS-199 and WS-138

In response, in 1957 the Air Force began studying solutions to the "Puzzle of Polaris" under the WS-199 program. WS-199 was a grab-bag effort, studying anything that might improve the survivability of the Air Force strike capability. Primary among these were two air-launched ballistic missiles, Bold Orion and High Virgo. These systems would give the Air Force a system somewhat similar to the Navy's; in times of high alert, the bomber force would be sent to holding positions far outside the range of any Soviet defenses, and then launch their missiles on command. Using aerial refueling, a bomber might be expected to be able to loiter for as long as a day.

But this system had a major advantage compared to Polaris, as the missiles could be retargeted before launch. In theory, the bombers could be used as a second-strike weapon, attacking only those targets that had been missed in a first-strike, or alternately, being switched from counterforce to countervalue targets or vice versa. Ground-based systems like Atlas and Polaris lacked this ability, and could only be retargeted with a significant amount of effort. Even the latest Air Force design, the LGM-30 Minuteman, required changes in targeting data to be loaded from magnetic tape in a process that took several weeks.

WS-199 was generally successful, but the two ALBMs had shorter range than desired. The Air Force tendered bids for a longer-range version in early 1959. Douglas Aircraft received the prime contract in May, and in turn subcontracted to Northrop for the guidance system, Aerojet for the propulsion system, and General Electric for the reentry vehicle. The system was initially known as WS-138A and was given the official name GAM-87 Skybolt in 1960.

British involvement

At the same time, the Royal Air Force (RAF) was having problems with their MRBM missile project, the Blue Streak, which was long overdue. Even if this was successful it faced the serious problem of basing. No fixed land-based missile system could be credibly installed in the British Isles; they were well within the range of Soviet air strikes. The limited land mass available meant it would be relatively easy for missile sites to be spotted no matter what security measures were taken. Suitable locations for construction also carried a social and political cost. Fixed land-based ballistic missile sites need many thousands of acres per squadron (typically ten missiles); and the squadrons need to be apportioned over many thousands of square miles so that no single attack could conceivably destroy them all in one strike.

This left the deterrent based on their own bomber force, the V bomber fleet, which the RAF had already long concluded would be unable to penetrate Soviet defenses by about 1960. The RAF was in the process of introducing their own stand-off missile, the 950 kilometres (590 mi) ranged Mach 3 Blue Steel. While capable, the missile flew at altitudes and speeds that left it vulnerable to improving SAMs, and it had a number of reliability and serviceability issues that made it less than ideal. A faster, longer-ranged version was being designed, Blue Steel II, but it would be some time before it could enter service.

The long-range Skybolt would eliminate the need for both the Blue Streak and the Blue Steel II. Blue Steel II was canceled in December 1959 and the British Cabinet decided in February 1960 to cancel Blue Streak as well. Prime Minister Macmillan met President Eisenhower in March 1960 and agreed to purchase 144 Skybolts for the RAF. By agreement, British funding for research and development was limited to that required to modify the V bombers to take the missile, but the British were allowed to fit their own warheads and the Americans were given nuclear submarine basing facilities in Scotland. Following the agreement, the Blue Streak program was formally canceled in April 1960 and in May 1960 an agreement for an initial order of 100 Skybolts was concluded.

Avro was made an associate contractor to manage the Skybolt program for the United Kingdom and four different schemes were submitted to find a platform for the missile. A number of different aircraft were considered, including a variant of the Vickers VC10 airliner and two of the current V bombers, the Avro Vulcan and Handley Page Victor. It was decided to use the Vulcan to initially carry two missiles each on hardpoints outboard of the main landing gear.

Development and testing

During development, it was decided that the system could not reach the required accuracy at the desired range without an update to the guidance system. This led to the introduction of a star tracker platform that would be used to further enhance the existing inertial navigation system. The system was capable of tracking bright stars in direct sunlight, a challenging requirement. This change meant that the missile could only be carried in locations where the front of the missile could continually observe the sky. This had always been the case on the USAF's B-52 bombers, where they were carried under the wings, but presented a problem for some of the UK designs. In the end, Skybolt was limited to the Vulcan.

By 1961, several test articles were ready for testing from B-52's, with drop-tests starting in January. In January 1961 a Vulcan visited the Douglas plant at Santa Monica, California, to make sure the modifications to the aircraft were electrically compatible with the missile. In Britain, compatibility trials with mockups started on the Vulcan. Powered tests started in April 1962, but the test series went badly, with the first five trials ending in failure of one sort or another. The first fully successful flight occurred on 19 December 1962.

Cancellation

By this point, the value of the Skybolt system in the US had been seriously eroded. The Polaris had recently gone into service, with overall capabilities similar to Skybolt, but with "loiter" times on the order of months instead of hours. Additionally, the US Air Force itself was well into the process of developing the Minuteman missile, whose improved accuracy reduced the need for any bomber attacks. Robert McNamara was particularly opposed to the bomber force and repeatedly stated he felt that the combination of SLBMs and ICBMs would render them useless. He pressed for the cancellation of Skybolt as an unnecessary program.

The British, on the other hand, had canceled all other projects to concentrate fully on Skybolt. When McNamara informed them that they were considering canceling the program in November 1962, a firestorm of protest broke out in the House of Commons. Jo Grimond noted "Does not this mark the absolute failure of the policy of the independent deterrent? Is it not the case that everybody else in the world knew this, except the Conservative Party in this country?" President Kennedy officially cancelled the program on 22 December 1962.

As the political row grew into a major crisis, an emergency meeting between parties from the US and UK was called, leading to the Nassau agreement. Over the next few days a new plan was hammered out that saw the UK purchase the Polaris SLBM, but equipped with British warheads that lacked the dual-key system. The UK would thus retain its independent deterrent force, although its control passed from the RAF largely to the Royal Navy. The Polaris, a much better weapon system for the UK, was a major "scoop" and has been referred to as "almost the bargain of the century". The RAF kept a tactical nuclear capability with the WE.177 which armed V bombers and later the Panavia Tornado force.

A B-52G launched the last XGAM-87A missile down the Atlantic Missile Range a day after the program was canceled. In June 1963, the XGAM-87A was redesignated as XAGM-48A.

Description

The GAM-87 was powered by a two-stage solid-fuel rocket motor. The missile was fitted with a tailcone to reduce drag while on the pylon, which was ejected shortly after being dropped from the plane. After first stage burnout, the Skybolt coasted for a while before the second stage ignited. First stage control was by eight movable tail fins, while the second stage was equipped with a gimballed nozzle.

Guidance was entirely by inertial platform. The current position was constantly updated from the host aircraft through accurate fixes, meaning that the accuracy of the platform inside the missile was not as critical.

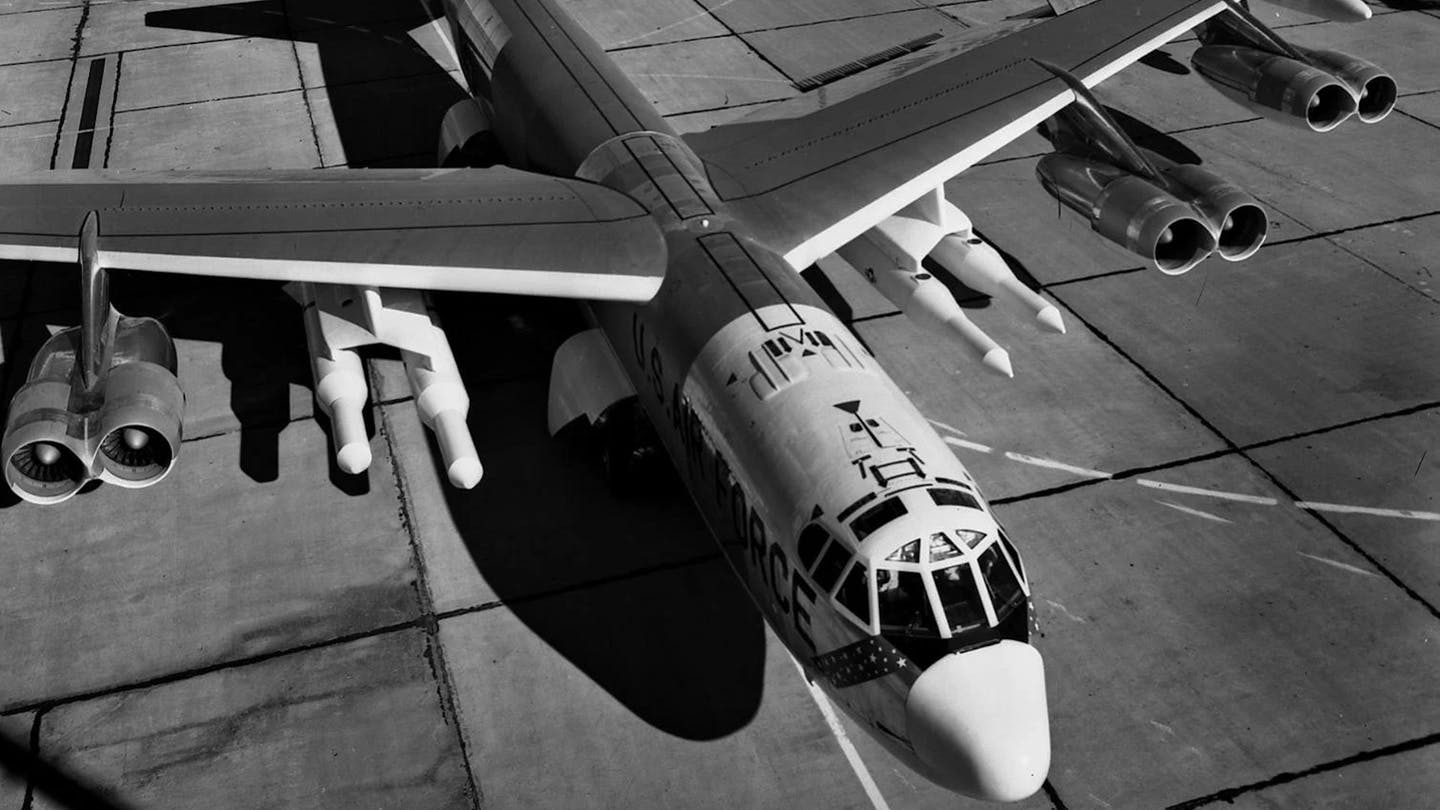

B-52s were to carry four missiles, two under each wing on side-by-side pylons. The Vulcan carried two missiles, one each on smaller underwing pylons.
