La USS Missouri (BB-63) è stata una corazzata della Marina degli Stati Uniti, entrata più volte nella storia del suo paese sia direttamente che con i suoi 20 comandanti.
Storia
La corazzata USS Missouri della Marina degli Stati Uniti d'America, appartiene alla classe Iowa, con un tonnellaggio di 58.000 tonnellate, e una lunghezza di 270,43 metri. Fu la terza su quattro della sua classe (Iowa BB-61, New Jersey BB-62, Wisconsin BB-64). È stata l'ultima corazzata costruita dagli Stati Uniti (la USS Wisconsin fu impostata dopo ma varata prima della Missouri).
Fu varata il 29 gennaio 1944 ed ebbe come madrina Mary Margaret Truman, figlia di Harry Truman, allora un senatore dello stato del Missouri e poi 33º Presidente degli Stati Uniti. La nave prende il nome del Missouri, stato di nascita di Harry Truman.
Entrò in servizio l'11 giugno del 1944 sotto il comando del capitano di vascello William M. Callaghan e fu inviata nel teatro di guerra del Pacifico per partecipare alle operazioni belliche contro il Giappone.
La resa del Giappone si firmò sulla sua coperta nella baia di Tokyo, il 2 settembre del 1945, meno di un mese dopo i bombardamenti atomici di Hiroshima e Nagasaki, chiudendo la seconda guerra mondiale.
In seguito prese parte alla guerra di Corea, unica corazzata americana a parteciparvi. Nel 1955 fu messa nella riserva e per trenta anni non ebbe comandanti. Rientrò in servizio nel maggio del 1986 e successivamente partecipò alla prima Guerra del Golfo, durante la quale fu utilizzata come base di lancio di missili Tomahawk e per colpire obiettivi terrestri con i cannoni di bordo. Nel marzo del 1992 ha terminato il suo servizio e il 29 gennaio 1999, esattamente 55 anni dopo il suo varo, è diventata un museo, ancorata nel porto di Pearl Harbor.
Con lo stesso nome vi fu una nave, BB-11, attiva dal 1903 al 1922. Aveva un tonnellaggio di 13.500 tonnellate e apparteneva alla classe Maine.
La classe Iowa fu una classe di navi da battaglia statunitensi, con 4 unità realizzate e diverse altre previste ma cancellate, con unità navali molto veloci per delle corazzate, e artiglierie da 406 mm di eccellenti prestazioni. Esse hanno prestato servizio anche nel dopoguerra, con varie rivitalizzazioni, e sono uscite dalla riserva dell'United States Navy solo nel 1992, dopo aver preso parte oltre che alla seconda guerra mondiale, alla guerra di Corea, alla guerra del Vietnam e alla guerra del golfo. Fu proprio a bordo di una nave di questa classe, la USS Missouri, che venne firmata la resa dei giapponesi nel secondo conflitto mondiale.
Corazzatura
Le unità della classe Iowa sono caratterizzate da spessori di corazzatura relativamente modesti, se confrontati con quelli delle altre navi da battaglia, sia in accordo alla necessità di avere prestazioni elevate, sia in considerazione della ridotta possibilità, già nel momento della loro progettazione, di arrivare al confronto diretto con altre navi da battaglia.
Le protezioni verticali, deputate a difendere da proiettili di artiglieria con bassa angolazione e da siluri, sono incentrate sulla cintura corazzata. Questa ha uno spessore di 307mm lungo l'intero ridotto corazzato (tra le centine 50 e 166) tra il secondo e il terzo ponte e continua sotto la linea di galleggiamento assottigliandosi fino a raggiungere i 41 mm poco prima del fondo della nave. Dietro la parte di cintura spessa 307 mm (secondo e terzo ponte) è presente una paratia paraschegge di 38 mm di spessore, che si prolunga a poppavia del ridotto corazzato fino all'ordinata 171. Inoltre la murata al disopra della cintura corazzata (tra il secondo ponte e il ponte di coperta) è protetta da una "fascia" di spessore compreso tra i 22 e i 15 mm, tra la centina 50 e la centina 173. A prora e a poppa, il ridotto corazzato è chiuso da paratie di 280 mm. Infine, tra la centina 189 e la centina 203, in corrispondenza dei locali dei timoni e quindi all'esterno del ridotto corazzato, è presente un'ulteriore protezione di 343 mm di spessore.
Le protezioni orizzontali, destinate a proteggere da ordigni di aereo o da proiettili di artiglieria con traiettoria fortemente parabolica, sono suddivise su tre ponti. Il Ponte di Coperta presenta una corazzatura di 38 mm tra l'ordinata 41 (a proravia del ridotto corazzato) e l'ordinata 172 (a poppavia del ridotto). Inoltre a proravia dell'ordinata 41 (tra la 33 e la 41) e a poppavia della 172 (tra la 172 e la 191) si ha una progressiva rastremazione della corazzatura che passa da 38 mm a 19 mm. Questo corazzatura ha la funzione di innescare le spolette ad effetto ritardato, in modo da provocare la loro detonazione prima che arrivino a contatto con il ponte corazzato principale che coincide con il Secondo Ponte. Il Secondo Ponte ha una protezione spessa 121 mm all'interno del ridotto corazzato (ordinate dalla 50 alla 166) alla quale si aggiunge, immediatamente al di sotto, una sorta di "ponte paraschegge" di 16 mm che però si trova nella zona compresa tra le barbette delle torri di grosso calibro, barbette escluse (ordinate dalla 79 alla 156). Inoltre, all'esterno del ridotto corazzato (ordinate dalla 34 alla 50 e dalla 50 alla 166), il Secondo Ponte si assottiglia a 32-19mm. Questa corazzatura ha il compito di arrestare o quantomeno contenere la detonazione di ordigni attivati dal Ponte di Coperta. Il Terzo Ponte costituisce infine, all'interno del ridotto corazzato, un ulteriore "ponte paraschegge" spesso 25,4 mm in corrispondenza delle barbette delle torri di grosso calibro (ordinate dalla 50 alla 82 e dalla 151 alla 166) e da 12,7 mm a 16 mm in corrispondenza delle caldaie e dei gruppi turboriduttori (ordinate dalla 82 alla 151). Sempre al livello del Terzo Ponte è però presente una particolare corazzatura destinata a proteggere gli assi delle eliche e i timoni gemelli. Essa consta di uno spessore di 143 mm più 19 mm di paraschegge sottostante tra l'ordinata 166 e l'ordinata 189 (assi motori), che diventa poi di 159 mm tra l'ordinata 189 e la 203 (timoneria). Questa ultima parte della corazzatura del Terzo Ponte va a costituire con la "piastra" di corazzatura verticale a cui si è accennato precedentemente una sorta di "mini-ridotto" che incapsula gli organi di governo.
Armamento
Artiglieria alla costruzione:
- 9 cannoni da 406/50mm; 20 cannoni da 127/38mm; 80 cannoni AA da 40/56mm; 49 mitragliere AA da 20/70mm;
- Dalla Guerra fredda alla Guerra del Golfo:
- 9 cannoni da 406/50mm; 12 cannoni da 127/38mm; Missili: 32 BGM-109 Tomahawk; 16 RGM-84 Harpoon; 4 20/70mm Phalanx CIWS.
Unità della classe
La classe doveva essere inizialmente composta da quattro unità, Iowa, New Jersey, Missouri e Wisconsin, in vista delle future navi della classe Montana; visto che la inferiore velocità di queste ultime non le rendeva in grado di scortare i gruppi da battaglia di portaerei, altre due navi vennero previste, inizialmente denominate Montana ed Ohio, poi Illinois e Kentucky. Le prime quattro furono effettivamente completate e prestarono servizio fino agli anni novanta, e due di esse figurano ancora nel registro della Riserva Navale statunitense. Le ultime due erano in predicato di diventare unità lanciamissili o portaerei, ma nessuna delle due soluzioni si concretizzò e le navi vennero rottamate, la Illinois sullo scalo e la Kentucky in avanzato stato di completamento nel 1958.
ENGLISH
USS Missouri (BB-63) ("Mighty Mo" or "Big Mo") is an Iowa-class battleship and was the third ship of the United States Navy to be named after the U.S. state of Missouri. Missouri was the last battleship commissioned by the United States and is best remembered as the site of the surrender of the Empire of Japan, which ended World War II.
Missouri was ordered in 1940 and commissioned in June 1944. In the Pacific Theater of World War II she fought in the battles of Iwo Jima and Okinawa and shelled the Japanese home islands, and she fought in the Korean War from 1950 to 1953. She was decommissioned in 1955 into the United States Navy reserve fleets (the "Mothball Fleet"), but reactivated and modernized in 1984 as part of the 600-ship Navy plan, and provided fire support during Operation Desert Storm in January/February 1991.
Missouri received a total of 11 battle stars for service in World War II, Korea, and the Persian Gulf, and was finally decommissioned on 31 March 1992 after serving a total of 17 years of active service, but remained on the Naval Vessel Register until her name was struck in January 1995. In 1998, she was donated to the USS Missouri Memorial Association and became a museum ship at Pearl Harbor.
Construction
Missouri was one of the Iowa-class "fast battleship" designs planned in 1938 by the Preliminary Design Branch at the Bureau of Construction and Repair. She was laid down at the Brooklyn Navy Yard on 6 January 1941, launched on 29 January 1944 and commissioned on 11 June with Captain William Callaghan in command. The ship was the third of the Iowa class, but the fourth and final Iowa-class ship commissioned by the U.S. Navy. The ship was christened at her launching by Mary Margaret Truman, daughter of Harry S. Truman, then a United States Senator from Missouri.
Missouri's main battery consisted of nine 16 in (406 mm)/50 cal Mark 7 guns, which could fire 2,700 lb (1,200 kg) armor-piercing shells some 20 mi (32.2 km). Her secondary battery consisted of twenty 5 in (127 mm)/38 cal guns in twin turrets, with a range of about 10 mi (16 km). With the advent of air power and the need to gain and maintain air superiority came a need to protect the growing fleet of allied aircraft carriers; to this end, Missouri was fitted with an array of Oerlikon 20 mm and Bofors 40 mm anti-aircraft guns to defend allied carriers from enemy airstrikes. When reactivated in 1984 Missouri had her 20 mm and 40 mm AA guns removed, and was outfitted with Phalanx CIWS mounts for protection against enemy missiles and aircraft, and Armored Box Launchers and Quad Cell Launchers designed to fire Tomahawk missiles and Harpoon missiles, respectively. Missouri and her sister ship Wisconsin were fitted with thicker traverse bulkhead armor, 14.5 inches (368 mm), compared to 11.3 inches (287 mm) in the first two ships of her class, the Iowa and New Jersey.
Missouri was the last U.S. battleship to be completed. Wisconsin, the highest-numbered U.S. battleship built, was completed before Missouri. The last-two Iowa-class battleships, Illinois and Kentucky, were ordered but cancelled, and all five of the twelve-gun Montana-class battleship, BB-67 to BB-71, that were ordered in May 1942, were also cancelled by late July 1943.
World War II (1944–1945)
Shakedown and service with Task Force 58, Admiral Mitscher
After trials off New York and shakedown and battle practice in the Chesapeake Bay, Missouri departed Norfolk, Virginia on 11 November 1944, transited the Panama Canal on 18 November and steamed to San Francisco for final fitting out as fleet flagship. She stood out of San Francisco Bay on 14 December and arrived at Pearl Harbor, Hawaii on 24 December 1944. She departed Hawaii on 2 January 1945 and arrived in Ulithi, West Caroline Islands on 13 January. There she was temporary headquarters ship for Vice Admiral Marc A. Mitscher. The battleship put to sea on 27 January to serve in the screen of the Lexington carrier task group of Mitscher's TF 58, and on 16 February the task force's aircraft carriers launched the first naval air strikes against Japan since the famed Doolittle raid, which had been launched from the carrier Hornet in April 1942.
Missouri then steamed with the carriers to Iwo Jima where her main guns provided direct and continuous support to the invasion landings begun on 19 February. After TF 58 returned to Ulithi on 5 March, Missouri was assigned to the Yorktown carrier task group. On 14 March, Missouri departed Ulithi in the screen of the fast carriers and steamed to the Japanese mainland. During strikes against targets along the coast of the Inland Sea of Japan beginning on 18 March, Missouri shot down four Japanese aircraft.
Raids against airfields and naval bases near the Inland Sea and southwestern Honshū continued. When the carrier Franklin incurred battle damage, the Missouri's carrier task group provided cover for the Franklin's retirement toward Ulithi until 22 March, then set course for pre-invasion strikes and bombardment of Okinawa.
Missouri joined the fast battleships of TF 58 in bombarding the southeast coast of Okinawa on 24 March, an action intended to draw enemy strength from the west coast beaches that would be the actual site of invasion landings. Missouri rejoined the screen of the carriers as Marine and Army units stormed the shores of Okinawa on the morning of 1 April. An attack by Japanese forces was repulsed successfully.
On 11 April, a low-flying kamikaze Zero, although fired upon, crashed on Missouri's starboard side, just below her main deck level. The starboard wing of the plane was thrown far forward, starting a gasoline fire at 5 in (127 mm) Gun Mount No. 3. The battleship suffered only superficial damage, and the fire was brought quickly under control. The remains of the pilot were recovered on board the ship just aft of one of the 40 mm gun tubs. Although crewmen wanted to hose the remains over the side, Captain Callaghan decided that the young Japanese pilot had done his job to the best of his ability, and with honor, so he should be given a military funeral. The following day he was buried at sea with military honors. The dent made by the Zero in the Missouri's side remains to this day.
About 23:05 on 17 April, Missouri detected an enemy submarine 12 mi (19 km) from her formation. Her report set off a hunter-killer operation by the light carrier Bataan and four destroyers, which sank the Japanese submarine I-56.
Missouri was detached from the carrier task force off Okinawa on 5 May and sailed for Ulithi. During the Okinawa campaign she had shot down five enemy planes, assisted in the destruction of six others, and scored one probable kill. She helped repel 12 daylight attacks of enemy raiders and fought off four night attacks on her carrier task group. Her shore bombardment destroyed several gun emplacements and many other military, governmental, and industrial structures.
Service with the Third Fleet, Admiral Halsey
Missouri arrived at Ulithi on 9 May, 1945, and then proceeded to Apra Harbor, Guam, arriving on 18 May. That afternoon Admiral William F. Halsey, Jr., Commander Third Fleet, brought his staff from cruiser Louisville onto the Missouri. She passed out of the harbor on 21 May, and by 27 May was again conducting shore bombardment against Japanese positions on Okinawa. Missouri led the 3rd Fleet in strikes on airfields and installations on Kyūshū on 2–3 June. She rode out a fierce storm on 5 and 6 June. Some topside fittings were smashed, but Missouri suffered no major damage. Her fleet again struck Kyūshū on 8 June, then hit hard in a coordinated air-surface bombardment before retiring towards Leyte. She arrived at San Pedro Bay, Leyte on 13 June, after almost three months of continuous operations in support of the Okinawa campaign.
Here she rejoined the powerful 3rd Fleet in strikes at the heart of Japan from within its home waters. The fleet set a northerly course on 8 July to approach the Japanese main island, Honshū. Raids took Tokyo by surprise on 10 July, followed by more devastation at the juncture of Honshū and Hokkaidō, the second-largest Japanese island, on 13–14 July. For the first time, naval gunfire destroyed a major installation within the home islands when Missouri joined in a shore bombardment on 15 July that severely damaged the Nihon Steel Co. and the Wanishi Ironworks at Muroran, Hokkaido.
During the nights of 17 and 18 July, Missouri bombarded industrial targets in Honshū. Inland Sea aerial strikes continued through 25 July, and Missouri guarded the carriers as they attacked the Japanese home islands.
Signing of the Japanese Instrument of Surrender
Strikes on Hokkaidō and northern Honshū resumed on 9 August, the day the second atomic bomb was dropped.
After the Japanese agreed to surrender, Admiral Sir Bruce Fraser of the Royal Navy, the Commander of the British Pacific Fleet, boarded Missouri on 16 August and conferred the honour of Knight Grand Cross of the Order of the British Empire upon Admiral Halsey. Missouri transferred a landing party of 200 officers and men to the battleship Iowa for temporary duty with the initial occupation force for Tokyo on 21 August. Missouri herself entered Tokyo Bay early on 29 August to prepare for the signing by Japan of the official instrument of surrender. High-ranking military officials of all the Allied Powers were received on board on 2 September, including Chinese General Hsu Yung-Ch'ang, British Admiral-of-the-Fleet Sir Bruce Fraser, Soviet Lieutenant-General Kuzma Nikolaevich Derevyanko, Australian General Sir Thomas Blamey, Canadian Colonel Lawrence Moore Cosgrave, French Général d'Armée Philippe Leclerc de Hauteclocque, Dutch Vice Admiral Conrad Emil Lambert Helfrich, and New Zealand Air Vice Marshal Leonard M. Isitt.
Fleet Admiral Chester Nimitz boarded shortly after 0800, and General of the Army Douglas MacArthur, the Supreme Commander for the Allies, came on board at 0843. The Japanese representatives, headed by Foreign Minister Mamoru Shigemitsu, arrived at 0856. At 0902, General MacArthur stepped before a battery of microphones and opened the 23-minute surrender ceremony to the waiting world by stating, "It is my earnest hope—indeed the hope of all mankind—that from this solemn occasion a better world shall emerge out of the blood and carnage of the past, a world founded upon faith and understanding, a world dedicated to the dignity of man and the fulfillment of his most cherished wish for freedom, tolerance, and justice."
During the surrender ceremony, the deck of Missouri was decorated with a 31-star American flag that had been taken ashore by Commodore Matthew Perry in 1853 after his squadron of "Black Ships" sailed into Tokyo Bay to force the opening of Japan's ports to foreign trade. This flag was actually displayed with the reverse side showing, i.e., stars in the upper right corner: the historic flag was so fragile that the conservator at the Naval Academy Museum had sewn a protective linen backing to one side to help secure the fabric from deteriorating, leaving its "wrong side" visible. The flag was displayed in a wood-framed case secured to the bulkhead overlooking the surrender ceremony. Another U.S. flag was raised and flown during the occasion, a flag that some sources have indicated was in fact that flag which had flown over the U.S. Capitol on 7 December 1941. This is not true; it was a flag taken from the ship's stock, according to Missouri's commanding officer, Captain Stuart "Sunshine" Murray, and it was "...just a plain ordinary GI-issue flag".
By 09:30 the Japanese emissaries had departed. In the afternoon of 5 September, Admiral Halsey transferred his flag to the battleship South Dakota, and early the next day Missouri departed Tokyo Bay. As part of the ongoing Operation Magic Carpet she received homeward bound passengers at Guam, then sailed unescorted for Hawaii. She arrived at Pearl Harbor on 20 September and flew Admiral Nimitz's flag on the afternoon of 28 September for a reception.
Post-war (1946–1950)
The next day, Missouri departed Pearl Harbor bound for the eastern seaboard of the United States. She reached New York City on 23 October and hoisted the flag of Atlantic Fleet commander Admiral Jonas Ingram. Four days later, Missouri boomed out a 21-gun salute as President Truman boarded for Navy Day ceremonies.
After an overhaul in the New York Naval Shipyard and a training cruise to Cuba, Missouri returned to New York. During the afternoon of 21 March 1946, she received the remains of the Turkish Ambassador to the United States, Münir Ertegün. She departed on 22 March for Gibraltar, and on 5 April anchored in the Bosphorus off Istanbul. She rendered full honors, including the firing of 19-gun salutes during the transfer of the remains of the late ambassador and again during the funeral ashore.
Missouri departed Istanbul on 9 April and entered Phaleron Bay, Piraeus, Greece, the following day for an overwhelming welcome by Greek government officials and anti-communist citizens. Greece had become the scene of a civil war between the communist World War II resistance movement and the returning Greek government-in-exile. The United States saw this as an important test case for its new doctrine of containment of the Soviet Union. The Soviets were also pushing for concessions in the Dodecanese to be included in the peace treaty with Italy and for access through the Dardanelles strait between the Black Sea and the Mediterranean. The voyage of Missouri to the eastern Mediterranean symbolized America's strategic commitment to the region. News media proclaimed her a symbol of U.S. interest in preserving both nations' independence.
Missouri departed Piraeus on 26 April, touching at Algiers and Tangiers before arriving at Norfolk on 9 May. She departed for Culebra Island on 12 May to join Admiral Mitscher's 8th Fleet in the Navy's first large-scale postwar Atlantic training maneuvers. The battleship returned to New York City on 27 May, and spent the next year steaming Atlantic coastal waters north to the Davis Strait and south to the Caribbean on various Atlantic command training exercises. On 13 December, during a target practice exercise in the North Atlantic, a star shell accidentally struck the battleship, but without causing injuries.
Missouri arrived at Rio de Janeiro on 30 August 1947 for the Inter-American Conference for the Maintenance of Hemisphere Peace and Security. President Truman boarded on 2 September to celebrate the signing of the Rio Treaty, which broadened the Monroe Doctrine by stipulating that an attack on any one of the signatory American countries would be considered an attack on all.
The Truman family boarded Missouri on 7 September 1947 to return to the United States and disembarked at Norfolk on 19 September. Her overhaul in New York—which lasted from 23 September to 10 March 1948—was followed by refresher training at Guantanamo Bay. The summer of 1948 was devoted to midshipman and reserve training cruises. Also in 1948, Missouri became the first battleship to host a helicopter detachment, operating two Sikorsky HO3S-1 machines for utility and rescue work. The battleship departed Norfolk on 1 November 1948 for a second three-week Arctic cold-weather training cruise to the Davis Strait. During the next two years, Missouri participated in Atlantic command exercises from the New England coast to the Caribbean, alternated with two midshipman summer training cruises. She was overhauled at Norfolk Naval Shipyard from 23 September 1949 to 17 January 1950.
Throughout the latter half of the 1940s, the various service branches of the United States had been reducing their inventories from their World War II levels. For the Navy, this resulted in several vessels of various types being decommissioned and either sold for scrap or placed in one of the various United States Navy reserve fleets scattered along the East and West Coast of the United States. As part of this contraction, three of the Iowa-class battleships had been de-activated and decommissioned; however, President Truman refused to allow Missouri to be decommissioned. Against the advice of Secretary of Defense Louis Johnson, Secretary of the Navy John L. Sullivan, and Chief of Naval Operations Louis E. Denfeld, Truman ordered Missouri to be maintained with the active fleet partly because of his fondness for the battleship and partly because the battleship had been christened by his daughter Margaret Truman.
Then the only U.S. battleship in commission, Missouri was proceeding seaward on a training mission from Hampton Roads early on 17 January 1950 when she ran aground 1.6 mi (2.6 km) from Thimble Shoal Light, near Old Point Comfort. She hit shoal water a distance of three ship-lengths from the main channel. Lifted some 7 feet (2.1 m) above waterline, she stuck hard and fast. With the aid of tugboats, pontoons, and a rising tide, she was refloated on 1 February 1950 and repaired.
The Korean War (1950–1953)
In 1950, the Korean War broke out, prompting the United States to intervene in the name of the United Nations. President Truman was caught off guard when the invasion struck, but quickly ordered U.S. forces stationed in Japan into South Korea. Truman also sent U.S.-based troops, tanks, fighter and bomber aircraft, and a strong naval force to Korea to support the Republic of Korea. As part of the naval mobilization Missouri was called up from the Atlantic Fleet and dispatched from Norfolk on 19 August to support UN forces on the Korean peninsula.
Missouri arrived just west of Kyūshū on 14 September, where she became the flagship of Rear Admiral Allan Edward Smith. The first American battleship to reach Korean waters, she bombarded Samchok on 15 September 1950 in an attempt to divert troops and attention from the Incheon landings. This was the first time since World War II that Missouri had fired her guns in anger, and in company with the cruiser Helena and two destroyers, she helped prepare the way for the U.S. Eighth Army offensive.
Missouri arrived at Incheon on 19 September, and on 10 October became flagship of Rear Admiral J. M. Higgins, commander, Cruiser Division 5 (CruDiv 5). She arrived at Sasebo on 14 October, where she became flagship of Vice Admiral A. D. Struble, Commander, 7th Fleet. After screening the aircraft carrier Valley Forge along the east coast of Korea, she conducted bombardment missions from 12 to 26 October in the Chongjin and Tanchon areas, and at Wonsan where she again screened carriers eastward of Wonsan.
MacArthur's amphibious landings at Incheon had severed the North Korean Army's supply lines; as a result, North Korea's army had begun a lengthy retreat from South Korea into North Korea. This retreat was closely monitored by the People's Republic of China (PRC), out of fear that the UN offensive against Korea would create a US-backed enemy on China's border, and out of concern that the UN offensive in Korea could evolve into a UN war against China. The latter of these two threats had already manifested itself during the Korea War: U.S. F-86 Sabres on patrol in "MiG Alley" frequently crossed into China while pursuing Communist MiGs operating out of Chinese airbases.
Moreover, there was talk among the U.N. commanders—notably General Douglas MacArthur—about a potential campaign against the People's Republic of China. In an effort to dissuade UN forces from completely overrunning North Korea, the People's Republic of China issued diplomatic warnings that they would use force to protect North Korea, but these warnings were not taken seriously for a number of reasons, among them the fact that China lacked air cover to conduct such an attack. This changed abruptly on 19 October 1950, when the first of an eventual total of 380,000 People's Liberation Army soldiers under the command of General Peng Dehuai crossed into North Korea, launching a full-scale assault against advancing U.N. troops. The PRC offensive caught the UN completely by surprise; UN forces realized they would have to fall back, and quickly executed an emergency retreat. UN assets were shuffled in order to cover this retreat, and as part of the force tasked with covering the UN retreat Missouri was moved into Hungnam on 23 December to provide gunfire support about the Hungnam defense perimeter until the last UN troops, the U.S. 3rd Infantry Division, were evacuated by way of the sea on 24 December 1950.
Missouri conducted additional operations with carriers and shore bombardments off the east coast of Korea until 19 March 1951. She arrived at Yokosuka on 24 March, and 4 days later was relieved of duty in the Far East. She departed Yokosuka on 28 March, and upon arrival at Norfolk on 27 April became the flagship of Rear Admiral James L. Holloway, Jr., commander, Cruiser Force, Atlantic Fleet. During the summer of 1951, she engaged in two midshipman training cruises to northern Europe. Under the command of Captain John Sylvester, Missouri entered Norfolk Naval Shipyard 18 October 1951 for an overhaul, which lasted until 30 January 1952.
Following winter and spring training out of Guantanamo Bay, Missouri visited New York, then set course from Norfolk on 9 June 1952 for another midshipman cruise. She returned to Norfolk on 4 August and entered Norfolk Naval Shipyard to prepare for a second tour in the Korean combat zone.
Missouri stood out of Hampton Roads on 11 September 1952 and arrived at Yokosuka on 17 October. Vice Admiral Joseph J. Clark, commander of the 7th Fleet, brought his staff onboard on 19 October. Her primary mission was to provide seagoing artillery support by bombarding enemy targets in the Chaho-Tanchon area, at Chongjin, in the Tanchon-Sonjin area, and at Chaho, Wonsan, Hamhung, and Hungnam during the period 25 October through 2 January 1953.
Missouri put into Incheon on 5 January 1953 and sailed thence to Sasebo, Japan. General Mark W. Clark, Commander in Chief, U.N. Command, and Admiral Sir Guy Russell, Royal Navy Commander-in-Chief, Far East Fleet, visited the battleship on 23 January. In the following weeks, Missouri resumed "Cobra" patrol along the east coast of Korea to support troops ashore. Repeated bombardment of Wonsan, Tanehon, Hungnam, and Kojo destroyed main supply routes along the eastern seaboard of Korea.
The last bombardment mission by Missouri was against the Kojo area on 25 March. On 26 March, her commanding officer—Captain Warner R. Edsall—suffered a fatal heart attack while conning her through the submarine net at Sasebo. She was relieved as the 7th Fleet flagship on 6 April by her older sister New Jersey.
Missouri departed Yokosuka on 7 April and arrived at Norfolk on 4 May to become flagship for Rear Admiral E. T. Woolridge, commander, Battleships-Cruisers, Atlantic Fleet, on 14 May. She departed on 8 June on a midshipman training cruise, returned to Norfolk on 4 August, and was overhauled in Norfolk Naval Shipyard from 20 November 1953 to 2 April 1954. As the flagship of Rear Admiral R. E. Kirby, who had relieved Admiral Woolridge, Missouri departed Norfolk on 7 June as flagship of the midshipman training cruise to Lisbon and Cherbourg. During this voyage Missouri was joined by the other three battleships of her class, New Jersey, Wisconsin, and Iowa, the only time the four ships sailed together. She returned to Norfolk on 3 August and departed on 23 August for inactivation on the West Coast. After calls at Long Beach and San Francisco, Missouri arrived in Seattle on 15 September. Three days later she entered Puget Sound Naval Shipyard where she was decommissioned on 26 February 1955, entering the Bremerton group, Pacific Reserve Fleet.
Deactivation
Upon arrival in Bremerton, west of Seattle, Missouri was moored at the last pier of the reserve fleet berthing. She served as a popular tourist attraction, logging about 250,000 visitors per year, who came to view the "surrender deck" where a bronze plaque memorialized the spot (35.3547°N 139.76°E) in Tokyo Bay where Japan surrendered to the Allies, and the accompanying historical display that included copies of the surrender documents and photos. A small cottage industry grew in the civilian community just outside the gates, selling souvenirs and other memorabilia. Nearly thirty years passed before Missouri returned to active duty.
Reactivation (1984 to 1990)

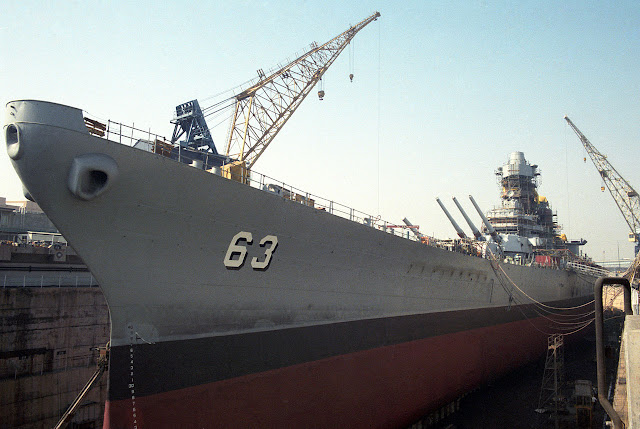

Under the Reagan Administration's program to build a 600-ship Navy, led by Secretary of the Navy John F. Lehman, Missouri was reactivated and towed by the salvage ship Beaufort to the Long Beach Naval Yard in the summer of 1984 to undergo modernization in advance of her scheduled recommissioning. In preparation for the move, a skeleton crew of 20 spent three weeks working 12- to 16-hour days preparing the battleship for her tow. During the modernization Missouri had her obsolete armament removed: 20 mm and 40 mm anti-aircraft guns, and four of her ten 5-inch (127 mm) gun mounts.
Over the next several months, the ship was upgraded with the most advanced weaponry available; among the new weapons systems installed were four Mk 141 quad cell launchers for 16 RGM-84 Harpoon anti-ship missiles, eight Mk 143 Armored Box Launcher mounts for 32 BGM-109 Tomahawk cruise missiles, and a quartet of Phalanx Close In Weapon System Gatling guns for defense against enemy anti-ship missiles and enemy aircraft. Also included in her modernization were upgrades to radar and fire control systems for her guns and missiles, and improved electronic warfare capabilities. During the modernization Missouri's 800 lb (360 kg) bell, which had been removed from the battleship and sent to Jefferson City, Missouri for sesquicentennial celebrations in the state, was formally returned to the battleship in advance of her recommissioning. Missouri was formally recommissioned in San Francisco on 10 May 1986. "This is a day to celebrate the rebirth of American sea power," Secretary of Defense Caspar Weinberger told an audience of 10,000 at the recommissioning ceremony, instructing the crew to "listen for the footsteps of those who have gone before you. They speak to you of honor and the importance of duty. They remind you of your own traditions." Also present at the recommissioning ceremony was Missouri governor John Ashcroft, U.S. Senator Pete Wilson, Secretary of the Navy John Lehman, San Francisco mayor Dianne Feinstein. Margaret Truman, (who christened the ship in 1943) gave a short speech especially aimed at the ship's crew, which ended with "now take care of my baby." Her remarks were met with rounds of applause from the crew.
Four months later Missouri departed from her new home port of Long Beach for an around-the-world cruise, visiting Pearl Harbor Hawaii; Sydney, Hobart, and Perth, Australia; Diego Garcia; the Suez Canal; Istanbul, Turkey; Naples, Italy; Rota, Spain; Lisbon, Portugal; and the Panama Canal. Missouri became the first American battleship to circumnavigate the globe since Theodore Roosevelt's "Great White Fleet" 80 years before—a fleet which included the first battleship named USS Missouri (BB-11).
In 1987, Missouri was outfitted with 40 mm grenade launchers and 25 mm chain guns and sent to take part in Operation Earnest Will, the escorting of reflagged Kuwaiti oil tankers in the Persian Gulf. These smaller-caliber weapons were installed due to the threat of Iranian-manned, Swedish-made Boghammar cigarette boats operating in the Persian Gulf at the time. On 25 July, the ship departed on a six-month deployment to the Indian Ocean and North Arabian Sea. She spent more than 100 continuous days at sea in a hot, tense environment. As the centerpiece for Battlegroup Echo, Missouri escorted tanker convoys through the Strait of Hormuz, keeping her fire control system trained on land-based Iranian Silkworm missile launchers.
Missouri returned to the United States via Diego Garcia, Australia, and Hawaii in early 1988. Several months later, Missouri's crew again headed for Hawaiian waters for the Rim of the Pacific (RimPac) exercises, which involved more than 50,000 troops and ships from the navies of Australia, Canada, Japan, and the United States. Port visits in 1988 included Vancouver and Victoria in Canada, San Diego, Seattle, and Bremerton.
In the early months of 1989, Missouri was in the Long Beach Naval Shipyard for routine maintenance. On 1 July 1989, while berthed at Pier D, the music video for Cher's "If I Could Turn Back Time" was filmed aboard Missouri and featured the ship's crew. A few months later she departed for Pacific Exercise (PacEx) '89, where she and New Jersey performed a simultaneous gunfire demonstration for the aircraft carriers Enterprise and Nimitz. The highlight of PacEx was a port visit in Pusan, Republic of Korea. In 1990, Missouri again took part in the RimPac Exercise with ships from Australia, Canada, Japan, Korea, and the U.S.
Gulf War (January–February 1991)
On 2 August 1990 Iraq, led by President Saddam Hussein, invaded Kuwait. In the middle of the month U.S. President George H. W. Bush, in keeping with the Carter Doctrine, sent the first of several hundred thousand troops, along with a strong force of naval support, to Saudi Arabia and the Persian Gulf area to support a multinational force in a standoff with Iraq.
Missouri's scheduled four-month Western Pacific port-to-port cruise set to begin in September was canceled just a few days before the ship was to leave. She had been placed on hold in anticipation of being mobilized as forces continued to mass in the Middle East. Missouri departed on 13 November 1990 for the troubled waters of the Persian Gulf. She departed from Pier 6 at Long Beach, with extensive press coverage, and headed for Hawaii and the Philippines for more work-ups en route to the Persian Gulf. Along the way she made stops at Subic Bay and Pattaya Beach, Thailand, before transiting the Strait of Hormuz on 3 January 1991. During subsequent operations leading up to Operation Desert Storm, Missouri prepared to launch Tomahawk Land Attack Missiles (TLAMs) and provide naval gunfire support as required.
Missouri fired her first Tomahawk missile at Iraqi targets at 01:40 am on 17 January 1991, followed by 27 additional missiles over the next five days.
On 29 January, the Oliver Hazard Perry-class frigate Curts led Missouri northward, using advanced mine-avoidance sonar. In her first naval gunfire support action of Desert Storm she shelled an Iraqi command and control bunker near the Saudi border, the first time her 16 in (406 mm) guns had been fired in combat since March 1953 off Korea. The battleship bombarded Iraqi beach defenses in occupied Kuwait on the night of 3 February, firing 112 16 in (406 mm) rounds over the next three days until relieved by Wisconsin. Missouri then fired another 60 rounds off Khafji on 11–12 February before steaming north to Faylaka Island. After minesweepers cleared a lane through Iraqi defenses, Missouri fired 133 rounds during four shore bombardment missions as part of the amphibious landing feint against the Kuwaiti shore line the morning of 23 February.[3] The heavy pounding attracted Iraqi attention; in response to the battleship's artillery strike, the Iraqis fired two HY-2 Silkworm missiles at the battleship, one of which missed.[3] The other missile was intercepted by a GWS-30 Sea Dart missile launched from the British air defence destroyer HMS Gloucester within 90 seconds and crashed into the sea roughly 700 yd (640 m) in front of Missouri.
During the campaign, Missouri was involved in a friendly fire incident with the Oliver Hazard Perry-class frigate Jarrett. According to the official report, on 25 February, Jarrett's Phalanx CIWS engaged the chaff fired by Missouri as a countermeasure against enemy missiles, and stray rounds from the firing struck Missouri, one penetrating through a bulkhead and becoming embedded in an interior passageway of the ship. Another round struck the ship on the forward funnel, passing completely through it. One sailor aboard Missouri was struck in the neck by flying shrapnel and suffered minor injuries. Those familiar with the incident are skeptical of this account, however, as Jarrett was reportedly over 2 mi (3.2 km) away at the time and the characteristics of chaff are such that a Phalanx would not normally regard it as a threat and engage it. There is no dispute that the rounds that struck Missouri did come from Jarrett, and that it was an accident. There was suspicion that a Phalanx operator on Jarrett may have accidentally fired off a few rounds manually, although there is no supporting evidence.
During the operation, Missouri also assisted coalition forces engaged in clearing Iraqi naval mines in the Persian Gulf. By the time the war ended, Missouri had destroyed at least 15 naval mines.
With combat operations out of range of the battleship's weapons on 26 February, Missouri had fired a total 783 rounds of 16 in (406 mm) shells and launched 28 Tomahawk cruise missiles during the campaign, and commenced to conduct patrol and armistice enforcement operations in the northern Persian Gulf until sailing for home on 21 March. Following stops at Fremantle and Hobart, Australia, the warship visited Pearl Harbor before arriving home in April. She spent the remainder of the year conducting type training and other local operations, the latter including 7 December "voyage of remembrance" to mark the 50th anniversary of the Pearl Harbor attack in 1941. During that ceremony, Missouri hosted President George H. W. Bush, the first such presidential visit for the warship since Harry S. Truman's in September 1947.
Museum ship (1998 to present)
With the collapse of the Soviet Union in the early 1990s and the absence of a perceived threat to the United States came drastic cuts in the defense budget, and the high cost of maintaining and operating battleships as part of the United States Navy's active fleet became uneconomical; as a result, Missouri was decommissioned on 31 March 1992 at Long Beach, California after 16 total years of active service. Her last commanding officer, Captain Albert L. Kaiss, wrote in the ship's final Plan of the Day:
Our final day has arrived. Today the final chapter in battleship Missouri's history will be written. It's often said that the crew makes the command. There is no truer statement ... for it's the crew of this great ship that made this a great command. You are a special breed of sailors and Marines and I am proud to have served with each and every one of you. To you who have made the painful journey of putting this great lady to sleep, I thank you. For you have had the toughest job. To put away a ship that has become as much a part of you as you are to her is a sad ending to a great tour. But take solace in this—you have lived up to the history of the ship and those who sailed her before us. We took her to war, performed magnificently and added another chapter in her history, standing side by side our forerunners in true naval tradition. God bless you all.
Missouri returned to be part of the United States Navy reserve fleet at Puget Sound Naval Shipyard, Bremerton, Washington, until 12 January 1995, when she was struck from the Naval Vessel Register. She remained in Bremerton, but was not open to tourists as she had been from 1957 to 1984. In spite of attempts by citizens' groups to keep her in Bremerton and be re-opened as a tourist site, the U.S. Navy wanted to pair a symbol of the end of World War II with one representing its beginning. On 4 May 1998, Secretary of the Navy John H. Dalton signed the donation contract that transferred her to the nonprofit USS Missouri Memorial Association (MMA) of Honolulu, Hawaii. She was towed from Bremerton on 23 May to Astoria, Oregon, where she sat in fresh water at the mouth of the Columbia River to kill and drop the saltwater barnacles and sea grasses that had grown on her hull in Bremerton, then towed across the eastern Pacific, and docked at Ford Island, Pearl Harbor on 22 June, just 500 yd (460 m) from the Arizona Memorial. Less than a year later, on 29 January 1999, Missouri was opened as a museum operated by the MMA.
Originally, the decision to move Missouri to Pearl Harbor was met with some resistance. The National Park Service expressed concern that the battleship, whose name has become synonymous with the end of World War II, would overshadow the battleship Arizona, whose dramatic explosion and subsequent sinking on 7 December 1941 has since become synonymous with the attack on Pearl Harbor. To help guard against this impression Missouri was placed well back from and facing the Arizona Memorial, so that those participating in military ceremonies on Missouri's aft decks would not have sight of the Arizona Memorial. The decision to have Missouri's bow face the Arizona Memorial was intended to convey that Missouri watches over the remains of Arizona so that those interred within Arizona's hull may rest in peace.
A gun from Missouri is paired with a gun formerly on Arizona at the Wesley Bolin Memorial Plaza just east of the Arizona state capitol complex in downtown Phoenix, Arizona. It is part of a memorial representing the start and end of the Pacific War for the United States.
Missouri was listed on the National Register of Historic Places on 14 May 1971 for hosting the signing of the instrument of Japanese surrender that ended World War II. She is not eligible for designation as a National Historic Landmark because she was extensively modernized in the years following the surrender.
On 14 October 2009, Missouri was moved from her berthing station on Battleship Row to a drydock at the Pearl Harbor Naval Shipyard to undergo a three-month overhaul. The work, priced at $18 million, included installing a new anti-corrosion system, repainting the hull, and upgrading the internal mechanisms. Drydock workers reported that the ship was leaking at some points on the starboard side. The repairs were completed the first week of January 2010 and the ship was returned to her berthing station on Battleship Row on 7 January 2010. The ship's grand reopening occurred on 30 January.
Appearances in popular culture
Missouri was central to the plot of the film Under Siege, and the ship was prominently featured in another movie, Battleship. As Missouri has not moved under her own power since 1992, shots of the ship at sea were obtained with the help of three tugboats. The music video for Cher's "If I Could Turn Back Time" was also filmed aboard the Missouri. The U.S. Navy, which had granted permission to shoot the video there, was unhappy with the sexual nature of the performance.
Awards
Missouri received three battle stars for her service in World War II, five for her service during the Korean War, and three for her service during the Gulf War. Missouri also received numerous awards for her service in World War II, Korea, and the Persian Gulf.
The Iowa class was a class of six fast battleships ordered by the United States Navy in 1939 and 1940. They were initially intended to intercept fast capital ships such as the Japanese Kongō class while also being capable of serving in a traditional battle line alongside slower battleships and act as its "fast wing". The Iowa class was designed to meet the Second London Naval Treaty's "escalator clause" limit of 45,000-long-ton (45,700 t) standard displacement. Four vessels, Iowa, New Jersey, Missouri, and Wisconsin, were completed; two more, Illinois and Kentucky, were laid down but canceled in 1945 and 1958 respectively before completion, and both hulls were scrapped in 1958–1959.
The four Iowa-class ships were the last battleships commissioned in the US Navy. All older US battleships were decommissioned by 1947 and stricken from the Naval Vessel Registry (NVR) by 1963. Between the mid-1940s and the early 1990s, the Iowa-class battleships fought in four major US wars. In the Pacific Theater of World War II, they served primarily as fast escorts for Essex-class aircraft carriers of the Fast Carrier Task Force and also shelled Japanese positions. During the Korean War, the battleships provided naval gunfire support (NGFS) for United Nations forces, and in 1968, New Jersey shelled Viet Cong and Vietnam People's Army forces in the Vietnam War. All four were reactivated and modernized at the direction of Congress in 1981, and armed with missiles during the 1980s, as part of the 600-ship Navy initiative. During Operation Desert Storm in 1991, Missouri and Wisconsin fired missiles and 16-inch (406 mm) guns at Iraqi targets.
Costly to maintain, the battleships were decommissioned during the post-Cold War draw down in the early 1990s. All four were initially removed from the Naval Vessel Register, but the United States Congress compelled the Navy to reinstate two of them on the grounds that existing NGFS would be inadequate for amphibious operations. This resulted in a lengthy debate over whether battleships should have a role in the modern navy. Ultimately, all four ships were stricken from the Naval Vessel Register and released for donation to non-profit organizations. With the transfer of Iowa in 2012, all four are part of non-profit maritime museums across the US.
Background
The vessels that eventually became the Iowa-class battleships were born from the US Navy's War Plan Orange, a Pacific war plan against Japan. War planners anticipated that the US fleet would engage and advance in the Central Pacific, with a long line of communication and logistics that would be vulnerable to high-speed Japanese cruisers. The chief concern was that the US Navy's traditional 21-knot battle line would be too slow to force these Japanese task forces into battle, while faster carriers and their cruiser escorts would be outmatched by the Japanese Kongō-class battlecruisers, which had been upgraded in the 1930s to fast battleships. As a result, the US Navy envisioned a fast detachment of the battle line that could bring the Japanese fleet into battle. Even during the development process of the preceding North Carolina-class and South Dakota-class battleships, designs that could achieve over 30 knots in order to counter the threat of fast "big gun" ships were seriously considered. At the same time, a special strike force consisting of fast battleships operating alongside carriers and destroyers was being envisaged; such a force could operate independently in advance areas and act as scouts. This concept eventually evolved into the Fast Carrier Task Force, though initially the carriers were believed to be subordinate to the battleship.
Another factor was the "escalator clause" of the Second London Naval Treaty, which reverted the gun caliber limit from 14 inches (356 mm) to 16 inches (406 mm). Japan had refused to sign the treaty and in particular refused to accept the 14-inch gun caliber limit or the 5:5:3 ratio of warship tonnage limits for Britain, United States, and Japan respectively. This resulted in the three treaty powers, the United States, Britain, and France, invoking the escalator clause after April 1937. Circulation of intelligence evidence in November 1937 of Japanese capital ships violating naval treaties caused the treaty powers to expand the escalator clause in June 1938, which amended the standard displacement limit of battleships from 35,000 long tons (35,600 t) to 45,000 long tons (45,700 t).
Design
Early studies
Work on what would eventually become the Iowa-class battleship began on the first studies in early 1938, at the direction of Admiral Thomas C. Hart, head of the General Board, following the planned invocation of the "escalator clause" that would permit maximum standard capital ship displacement of 45,000 long tons (45,700 t). Using the additional 10,000 long tons (10,200 t) over previous designs, the studies included schemes for 27-knot (50 km/h; 31 mph) "slow" battleships that increased armament and protection as well as "fast" battleships capable of 33 knots (61 km/h; 38 mph) or more. One of the "slow" designs was an expanded South Dakota-class carrying either twelve 16-inch/45 caliber Mark 6 guns or nine 18-inch (457 mm)/48 guns and with more armor and a power plant large enough to drive the larger ship through the water at the same 27-knot maximum speed as the South Dakotas. While the "fast" studies would result in the Iowa class, the "slow" design studies would eventually settle on twelve 16-inch guns and evolve into the design for the 60,500-long-ton (61,500 t) Montana class after all treaty restrictions were removed following the start of World War II. Priority was given to the "fast" design in order to counter Japan's 30 knot Kongō-class battlecruisers, whose higher speed advantage over existing U.S. battleships might let them "penetrate U.S. cruisers, thereby making it 'open season' on U.S. supply ships".
For "fast" battleships, one such design, pursued by the Design Division section of the Bureau of Construction and Repair, was a "cruiser-killer". Beginning on 17 January 1938, under Captain A.J. Chantry, the group drew up plans for ships with twelve 16-inch and twenty 5-inch (127 mm) guns, Panamax capability but otherwise unlimited displacement, a top speed of 35 knots (65 km/h; 40 mph) and a range of 20,000 nautical miles (37,000 km; 23,000 mi) when traveling at the more economical speed of 15 knots (28 km/h; 17 mph). Their plan fulfilled these requirements with a ship of 50,940 long tons (51,760 t) standard displacement, but Chantry believed that more could be done if the ship were to be this large; with a displacement greater than that of most battleships, its armor would have protected it only against the 8-inch (200 mm) weapons carried by heavy cruisers.
Three improved plans – "A", "B", and "C" – were designed at the end of January. An increase in draft, vast additions to the armor, and the substitution of twelve 6-inch (152 mm) guns in the secondary battery was common between the three designs. "A" was the largest, at 59,060 long tons (60,010 t) standard, and was the only one to still carry the twelve 16-inch guns in four triple turrets (3-gun turrets according to US Navy). It required 277,000 shp (207,000 kW) to make 32.5 knots (60.2 km/h; 37.4 mph). "B" was the smallest at 52,707 long tons (53,553 t) standard; like "A" it had a top speed of 32.5 knots, but "B" only required 225,000 shp (168,000 kW) to make this speed. It also carried only nine 16-inch guns, in three triple turrets. "C" was similar but it added 75,000 shp (56,000 kW) (for a total of 300,000 shp (220,000 kW)), to make the original requirement of 35 knots. The weight required for this and a longer belt – 512 feet (156 m), compared with 496 feet (151 m) for "B" – meant that the ship was 55,771 long tons (56,666 t) standard.
Design history
In March 1938, the General Board followed the recommendations of the Battleship Design Advisory Board, which was composed of the naval architect William Francis Gibbs, William Hovgaard (then president of New York Shipbuilding), John Metten, Joseph W. Powell, and the long-retired Admiral and former Chief of the Bureau of Ordnance Joseph Strauss. The board requested an entirely new design study, again focusing on increasing the size of the 35,000-long-ton (36,000 t) South Dakota-class. The first plans made for this indicated that 30 knots (56 km/h; 35 mph) was possible on a standard displacement of about 37,600 long tons (38,200 t). 33 knots (61 km/h; 38 mph) could be bought with 220,000 shp (160,000 kW) and a standard displacement of around 39,230 long tons (39,860 t), which was well below the London Treaty's "escalator clause" maximum limit of 45,000 long tons (45,700 t).
These designs were able to convince the General Board that a reasonably well-designed and balanced 33-knot "fast" battleship was possible within the terms of the "escalator clause". However, further studies revealed major problems with the estimates. The speed of the ships meant that more freeboard would be needed both fore and amidships, the latter requiring an additional foot of armored freeboard. Along with this came the associated weight in supporting these new strains: the structure of the ship had to be reinforced and the power plant enlarged to avoid a drop in speed. In all, about 2,400 long tons (2,440 t) had to be added, and the large margin the navy designers had previously thought they had – roughly 5,000 long tons (5,080 t) – was suddenly vanishing. The draft of the ships was also allowed to increase, which enabled the beam to narrow and thus reduced required power (since lower beam-to-draft ratio reduces wave-making resistance). This also allowed the ships to be shortened which reduced weight.
With the additional displacement, the General Board was incredulous that a tonnage increase of 10,000 long tons (10,200 t) would allow only the addition of 6 knots (11 km/h; 6.9 mph) over the South Dakotas. Rather than retaining the 16-inch/45 caliber Mark 6 guns used in the South Dakotas, they ordered that the preliminary design would have to include the more powerful but significantly heavier 16-inch/50 caliber Mark 2 guns left over from the canceled Lexington-class battlecruisers and South Dakota-class battleships of the early 1920s.
The 50-caliber gun weighed some 400 long tons (406 t) more than the 45-caliber did; due to the greater outside diameter of the barrel, the barbette diameter also had to be increased from 37-foot-3-inch (11.4 m) to 39 feet 4 inches (12.0 m) so the total weight gain was about 2,000 long tons (2,030 t), putting the ship at a total of 46,551 long tons (47,298 t) – well over the 45,000 long ton limit. An apparent savior appeared in a Bureau of Ordnance preliminary design for a turret that could carry the 50-caliber guns while also fit in the smaller barbette of the 45-caliber gun turret. Other weight savings were achieved through thinning some armor elements and substituting construction steel with armor-grade Special Treatment Steel (STS) in certain areas. The net savings reduced the preliminary design displacement to 44,560 long tons (45,280 t) standard, though the margin remained tight. This breakthrough was shown to the General Board as part of a series of designs on 2 June 1938.
However, the Bureau of Ordnance continued working on the turret with the larger barbette, while the Bureau of Construction and Repair utilized the smaller barbettes in the contract design of the new battleships. As the bureaus were independent of one another, they did not realize that the two plans could not go together until November 1938, when the contract design was in the final stages of refinement. By this time, the ships could not use the larger barbette, as it would require extensive alterations to the design and would result in substantial weight penalties. The General Board was astounded; one member asked the head of the Bureau of Ordnance if it had occurred to him that Construction and Repair would have wanted to know what turret his subordinates were working on "as a matter of common sense". A complete scrapping of plans was avoided only when designers within the Bureau of Ordnance were able to design a new 50-caliber gun, the Mark 7, that was both lighter and smaller in outside diameter; this allowed it to be placed in a turret that would fit in the smaller barbette. The redesigned 3-gun turret, equipped as it was with the Mark 7 naval gun, provided an overall weight saving of nearly 850 long tons (864 t) to the overall design of the Iowa class. The contract design displacement subsequently stood at 45,155 long tons (45,880 t) standard and 56,088 long tons (56,988 t) full load.
In May 1938, the United States Congress passed the Second Vinson Act which "mandated a 20% increase in strength of the United States Navy". The act was sponsored by Carl Vinson, a Democratic Congressman from Georgia who was Chairman of the House Naval Affairs and Armed Services Committee. The Second Vinson Act updated the provisions of the Vinson-Trammell Act of 1934 and the Naval Act of 1936, which had "authorized the construction of the first American battleships in 17 years", based on the provisions of the London Naval Treaty of 1930; this act was quickly signed by President Franklin D. Roosevelt and provided the funding to build the Iowa class. Each ship cost approximately US$100 million.
As 1938 drew to a close the contract design of the Iowas was nearly complete, but it would continuously evolve as the New York Navy Yard, the lead shipyard, conducted the final detail design. These revisions included changing the design of the foremast, replacing the original 1.1-inch (27.9 mm)/75-caliber guns that were to be used for anti-aircraft (AA) work with 20 mm (0.79 in)/70 caliber Oerlikon cannons and 40 mm (1.57 in)/56 caliber Bofors guns, and moving the combat information center into the armored hull. Additionally, in November 1939, the New York Navy Yard greatly modified the internal subdivision of the machinery rooms, as tests had shown the underwater protection in these rooms to be inadequate. The longitudinal subdivision of these rooms was doubled, and the result of this was clearly beneficial: "The prospective effect of flooding was roughly halved and the number of uptakes and hence of openings in the third deck greatly reduced." Although the changes meant extra weight and increasing the beam by 1 foot (0.30 m) to 108 feet 2 inches (32.97 m), this was no longer a major issue; Britain and France had renounced the Second London Naval Treaty soon after the beginning of the Second World War. The design displacement was 45,873 long tons (46,609 t) standard, approximately 2% overweight, when Iowa and New Jersey were laid down in June and September 1940. By the time the Iowas were completed and commissioned in 1943–44, the considerable increase in anti-aircraft armament – along with their associated splinter protection and crew accommodations – and additional electronics had increased standard displacement to some 47,825 long tons (48,592 t), while full load displacement became 57,540 long tons (58,460 t).
Specifications
General characteristics
The Iowa-class battleships are 860 ft 0 in (262.13 m) long at the waterline and 887 ft 3 in (270.43 m) long overall with beam of 108 ft 2 in (32.97 m). During World War II, the draft was 37 ft 2 in (11.33 m) at full load displacement of 57,540 long tons (58,460 t) and 34 ft 9.25 in (10.60 m) at design combat displacement of 54,889 long tons (55,770 t). Like the two previous classes of American fast battleships, the Iowas feature a triple bottom under the armored citadel and armored skegs around the inboard shafts. The dimensions of the Iowas were strongly influenced by speed. When the Second Vinson Act was passed by the United States Congress in 1938, the US Navy moved quickly to develop a 45,000-ton-standard battleship that would pass through the 110 ft (34 m) wide Panama Canal. Drawing on a 1935 empirical formula for predicting a ship's maximum speed based on scale-model studies in flumes of various hull forms and propellers and a newly developed empirical theorem that related waterline length to maximum beam, the Navy drafted plans for a battleship class with a maximum beam of 108 ft 2 in (32.97 m) which, when multiplied by 7.96, produced a waterline length of 860 ft (262 m). The Navy also called for the class to have a lengthened forecastle and amidship, which would increase speed, and a bulbous bow.
The Iowas exhibit good stability, making them steady gun platforms. At design combat displacement, the ships' (GM) metacentric height was 9.26 ft (2.82 m). They also have excellent maneuverability in the open water for their size, while seakeeping is described as good, but not outstanding. In particular, the long fine bow and sudden widening of the hull just in front of the foremost turret contributed to the ships being rather wet for their size. This hull form also resulted in very intense spray formations, which led to some difficulty refueling escorting destroyers.
Armament
Main battery
The primary guns used on these battleships are the nine 16-inch (406 mm)/50-caliber Mark 7 naval guns, a compromise design developed to fit inside the barbettes. These guns fire high explosive- and armor-piercing shells, and can fire a 16-inch shell approximately 23.4 nautical miles (43.3 km; 26.9 mi). The guns are housed in three 3-gun turrets: two forward of battleship's superstructure and one aft, in a configuration known as "2-A-1". The guns are 66 feet (20 m) long (50 times their 16-inch bore, or 50 calibers from breechface to muzzle). About 43 feet (13 m) protrudes from the gun house. Each gun weighs about 239,000 pounds (108,000 kg) without the breech, or 267,900 pounds (121,500 kg) with the breech. They fired 2,700-pound (1,225 kg) armor-piercing projectiles at a muzzle velocity of 2,500 ft/s (762 m/s), or 1,900-pound (862 kg) high-capacity projectiles at 2,690 ft/s (820 m/s), up to 24 miles (21 nmi; 39 km). At maximum range, the projectile spends almost 1½ minutes in flight. The maximum firing rate for each gun is two rounds per minute.
Each gun rests within an armored turret, but only the top of the turret protrudes above the main deck. The turret extends either four decks (Turrets 1 and 3) or five decks (Turret 2) down. The lower spaces contain rooms for handling the projectiles and storing the powder bags used to fire them. Each turret required a crew of between 85 and 110 men to operate. The original cost for each turret was US$1.4 million, but this figure does not take into account the cost of the guns themselves. The turrets are "three-gun", not "triple", because each barrel is individually sleeved and can be elevated and fired independently. The ship could fire any combination of its guns, including a broadside of all nine.
The large-caliber guns were designed to fire two different conventional 16-inch shells: the 2,700-pound (1,225 kg) Mk. 8 "Super-heavy" APC (Armor Piercing, Capped) shell for anti-ship and anti-structure work, and the 1,900-pound (862 kg) Mk. 13 high-explosive round designed for use against unarmored targets and shore bombardment. When firing the same conventional shell, the 16-inch/45 caliber Mark 6 used by the fast battleships of the North Carolina and South Dakota classes had a slight advantage over the 16-inch/50 caliber Mark 7 gun when hitting deck armor – a shell from a 45 cal gun would be slower, meaning that it would have a steeper trajectory as it descended. At 35,000 yards (20 mi; 32 km), a shell from a 45 cal would strike a ship at an angle of 45.2 degrees, as opposed to 36 degrees with the 50 cal The Mark 7 had a greater maximum range over the Mark 6: 23.64 miles (38.04 km) vs 22.829 miles (36.740 km).
In the 1950s, the W23, an adaptation of the W19 nuclear artillery shell was developed specifically for the 16-inch guns. The shell weighed 1,900 pounds (862 kg) had an estimated yield of 15 to 20 kilotons of TNT (63,000 to 84,000 GJ), and its introduction made the Iowa-class battleship's 16-inch guns the world's largest nuclear artillery, and made these four battleships the only US Navy ships ever to have nuclear shells for naval guns. Although developed for exclusive use by the battleship's guns it is not known if any of the Iowas actually carried these shells while in active service due to the United States Navy's policy of refusing to confirm or deny the presence of nuclear weaponry aboard its ships. In 1991 the United States unilaterally withdrew all of its nuclear artillery shells from service, and dismantling of the US nuclear artillery inventory is said to have been completed in 2004.
Secondary battery
The Iowas carried twenty 5-inch (127 mm)/38 caliber Mark 12 guns in ten Mark 28 Mod 2 enclosed base ring mounts. Originally designed to be mounted upon destroyers built in the 1930s, these guns were so successful that they were added to many American ships during the Second World War, including every major ship type and many smaller warships constructed between 1934 and 1945. They were considered to be "highly reliable, robust and accurate" by the Navy's Bureau of Ordnance.
Each 5-inch/38 gun weighed almost 4,000 pounds (1,814 kg) without the breech; the entire mount weighed 156,295 pounds (70,894 kg). It was 223.8 inches (5,680 mm) long overall, had a bore length of 190 inches (4,800 mm) and a rifling length of 157.2 inches (3,990 mm). The gun could fire shells at about 2,500–2,600 ft/s (762–792 m/s); about 4,600 could be fired before the barrel needed to be replaced. Minimum and maximum elevations were −15 and 85 degrees respectively. The guns' elevation could be raised or lowered at about 15 degrees per second. The mounts closest to the bow and stern could aim from −150 to 150 degrees; the others were restricted to −80 to 80 degrees. They could be turned at about 25 degrees per second.
The 5-inch/38 gun functioned as a dual purpose gun (DP); that is, it was able to fire at both surface and air targets with a reasonable degree of success. However, this did not mean that it possessed inferior anti-air abilities. As proven during 1941 gunnery tests conducted aboard North Carolina the gun could consistently shoot down aircraft flying at 12,000–13,000 feet (2.3–2.5 mi; 3.7–4.0 km), twice the effective range of the earlier single purpose 5-inch/25 caliber AA gun. As Japanese airplanes became faster, the gun lost some of its effectiveness in the anti-aircraft role; however, toward the end of the war its usefulness as an anti-aircraft weapon increased again because of an upgrade to the Mark 37 Fire Control System and proximity-fused shells.
The 5-inch/38 gun would remain on the battleships for the ships' entire service life; however, the total number of guns and gun mounts was reduced from twenty guns in ten mounts to twelve guns in six mounts during the 1980s' modernization of the four Iowas. The removal of four of the gun mounts was required for the battleships to be outfitted with the armored box launchers needed to carry and fire Tomahawk missiles. At the time of the 1991 Persian Gulf War, these guns had been largely relegated to littoral defense for the battleships. Since each battleship carried a small detachment of Marines aboard, the Marines would man one of the 5-inch gun mounts.
Anti-air battery
At the time of their commissioning, all four of the Iowa-class battleships were equipped with 20 quad 40 mm mounts and 49 single 20 mm mounts. These guns were respectively augmented with the Mk 14 range sight and Mk 51 fire control system to improve accuracy.
The Oerlikon 20 mm anti-aircraft gun, one of the most heavily produced anti-aircraft guns of the Second World War, entered service in 1941, and replaced the 0.50 inches (12.7 mm)/90 M2 Browning MG on a one-for-one basis. Between December 1941 and September 1944, 32% of all Japanese aircraft downed were credited to this weapon, with the high point being 48.3% for the second half of 1942; however, the 20 mm guns were found to be ineffective against the Japanese Kamikaze attacks used during the latter half of World War II and were subsequently phased out in favor of the heavier Bofors 40 mm anti-aircraft gun.
When the Iowa-class battleships were commissioned in 1943 and 1944, they carried twenty quad 40 mm AA gun mounts, which they used for defense against enemy aircraft. These heavy guns were also employed in the protection of allied aircraft carriers operating in the Pacific Theater of World War II, and accounted for roughly half of all Japanese aircraft shot down between 1 October 1944 and 1 February 1945. Although successful in this role against WWII aircraft, the 40 mm guns were stripped from the battleships in the jet age – initially from New Jersey when reactivated in 1968 and later from Iowa, Missouri, and Wisconsin when they were reactivated for service in the 1980s.
Propulsion
The powerplant of the Iowas consists of eight Babcock & Wilcox boilers and four sets of double reduction cross-compound geared turbines, with each turbine set driving a single shaft. Specifically, the geared turbines on Iowa and Missouri were provided by General Electric, while the equivalent machinery on New Jersey and Wisconsin was provided by Westinghouse. The plant produced 212,000 shp (158,000 kW) and propelled the ship up to a maximum speed of 32.5 kn (60.2 km/h; 37.4 mph) at full load displacement and 33 kn (61 km/h; 38 mph) at normal displacement. The ships carried 8,841 long tons (8,983 t) of fuel oil which gave a range of 15,900 nmi (29,400 km; 18,300 mi) at 17 kn (31 km/h; 20 mph). Two semi-balanced rudders gave the ships a tactical diameter of 814 yards (744 m) at 30 kn (56 km/h; 35 mph) and 760 yards (695 m) at 20 kn (37 km/h; 23 mph).
The machinery spaces were longitudinally divided into eight compartments with alternating fire and engine rooms to ensure adequate isolation of machinery components. Four fire rooms each contained two M-Type boilers operating at 600 pounds per square inch (4,137 kPa; 42 kgf/cm2) with a maximum superheater outlet temperature of 850 °F (454 °C). The double-expansion engines consist of a high-pressure (HP) turbine and a low-pressure (LP) turbine. The steam is first passed through the HP turbine which turns at up to 2,100 rpm. The steam, largely depleted at this point, is then passed through a large conduit to the LP turbine. By the time it reaches the LP turbine, it has no more than 50 psi (300 kPa) of pressure left. The LP turbine increases efficiency and power by extracting the last little bit of energy from the steam. After leaving the LP turbine, the exhaust steam passes into a condenser and is then returned as feed water to the boilers. Water lost in the process is replaced by three evaporators, which can make a total of 60,000 US gallons per day (3 liters per second) of fresh water. After the boilers have had their fill, the remaining fresh water is fed to the ship's potable water systems for drinking, showers, hand washing, cooking, etc. All of the urinals and all but one of the toilets on the Iowa class flush with saltwater in order to conserve fresh water. The turbines, especially the HP turbine, can turn at 2,000 rpm; their shafts drive through reduction gearing that turns the propeller shafts at speeds up to 225 rpm, depending upon the desired speed of the ship. The Iowas were outfitted with four screws: the outboard pair consisting of four-bladed propellers 18.25 ft (5.56 m) in diameter and inboard pair consisting of five-bladed propellers 17 ft (5.18 m) in diameter. The propeller designs were adopted after earlier testing had determined that propeller cavitation caused a drop in efficiency at speeds over 30 kn (56 km/h; 35 mph). The two inner shafts were housed in skegs to smooth the flow of water to the propellers and improve the structural strength of the stern.
The four engine rooms each has a pair of 1,250 kW Ship's Service Turbine Generators (SSTGs), providing the ship with a total non-emergency electrical power of 10,000 kW at 450 volts alternating current. Additionally, the vessels have a pair of 250 kW emergency diesel generators. To allow battle-damaged electrical circuits to be repaired or bypassed, the lower decks of the ship have a Casualty Power System whose large 3-wire cables and wall outlets called "biscuits" can be used to reroute power.
Electronics (1943–69)
The earliest search radars installed were the SK air-search radar and SG surface-search radar during World War II. They were located on the mainmast and forward fire-control tower of the battleships, respectively. As the war drew to a close, the United States introduced the SK-2 air-search radar and SG surface-search radar; the Iowa class was updated to make use of these systems between 1945 and 1952. At the same time, the ships' radar systems were augmented with the installation of the SP height finder on the main mast. In 1952, AN/SPS-10 surface-search radar and AN/SPS-6 air-search radar replaced the SK and SG radar systems, respectively. Two years later the SP height finder was replaced by the AN/SPS-8 height finder, which was installed on the main mast of the battleships.
In addition to these search and navigational radars, the Iowa class were also outfitted with a variety of fire control systems for their gun systems, and later for their missile systems. Beginning with their commissioning, the battleships made use of a trio of Mk 38 gun fire control systems to direct the 16-inch guns and a quartet of Mk 37 gun fire control systems to direct the 5-inch gun batteries. These systems were upgraded over time, but remained the cornerstones of the combat radar systems on the Iowa class during their careers. The range estimation of these gunfire control systems provided a significant accuracy advantage over earlier ships with optical rangefinders; this was demonstrated off Truk Atoll on 16 February 1944, when the Iowa engaged the Japanese destroyer Nowaki at a range of 35,700 yards (32.6 km; 17.6 nmi) and straddled her, setting the record for the longest-ranged straddle in history.
In World War II, the electronic countermeasures (ECM) included the SPT-1 and SPT-4 equipment; passive electronic support measures (ESM) were a pair of DBM radar direction finders and three intercept receiving antennas, while the active components were the TDY-1 jammers located on the sides of the fire control tower. The ships were also equipped with the Mark III identification, friend or foe (IFF) system, which were replaced by the Mark X when the ships were overhauled in 1955. When the New Jersey was reactivated in 1968 for the Vietnam War, she was outfitted with the ULQ-6 ECM system.
Armor
Like all battleships, the Iowas carried heavy armor protection against shellfire and bombs with significant underwater protection against torpedoes. The Iowa's "all-or-nothing" armor scheme was largely modeled on that of the preceding South Dakota class, and designed to give a zone of immunity against fire from 16-inch/45-caliber guns between 18,000 and 30,000 yards (16,000 and 27,000 m; 10 and 17 mi) away. The protection system consists of Class A face-hardened Krupp cemented (K.C.) armor and Class B homogeneous Krupp-type armor; furthermore, special treatment steel (STS), a high-tensile structural steel with armor properties comparable to Class B, was extensively used in the hull plating to increase protection.
The citadel consisting of the magazines and engine rooms were protected by an STS outer hull plating 1.5 inches (38 mm) thick and a Class A armor belt 12.1 inches (307 mm) thick mounted on 0.875-inch (22.2 mm) STS backing plate; the armor belt is sloped at 19 degrees, equivalent to 17.3 in (439 mm) of vertical class B armor at 19,000 yards. The armor belt extends to the triple bottom, where the Class B lower portion tapers to 1.62 inches (41 mm). The ends of the armored citadel are closed by 11.3-inch (287 mm) vertical Class A traverse bulkheads for Iowa and New Jersey. The traverse bulkhead armor on Missouri and Wisconsin was increased to 14.5 inches (368 mm); this extra armor provided protection from fire directly ahead, which was considered more likely given the high speed of the Iowas. The deck armor consists of a 1.5-inch-thick (38 mm) STS weather deck, a combined 6-inch-thick (152 mm) Class B and STS main armor deck, and a 0.63-inch-thick (16 mm) STS splinter deck. Over the magazines, the splinter deck is replaced by a 1-inch (25 mm) STS third deck that separates the magazine from the main armored deck. The powder magazine rooms are separated from the turret platforms by a pair of 1.5-inch STS annular bulkheads under the barbettes for flashback protection. The installation of armor on the Iowas also differed from those of earlier battleships in that the armor was installed while the ships were still "on the way" rather than after the ships had been launched.
The Iowas had heavily protected main battery turrets, with 19.5-inch (495 mm) Class B and STS face, 9.5-inch (241 mm) Class A sides, 12-inch (305 mm) Class A rear, and 7.25-inch (184 mm) Class B roof. The turret barbettes' armor is Class A with 17.3 inches (439 mm) abeam and 11.6 inches (295 mm) facing the centerline, extending down to the main armor deck. The conning tower armor is Class B with 17.3 inches (439 mm) on all sides and 7.25 inches (184 mm) on the roof. The secondary battery turrets and handling spaces were protected by 2.5 inches (64 mm) of STS. The propulsion shafts and steering gear compartment behind the citadel had considerable protection, with 13.5-inch (343 mm) Class A side strake and 5.6–6.2-inch (142–157 mm) roof.
The armor's immunity zone shrank considerably against guns equivalent to their own 16-inch/50-caliber guns armed with the Mk. 8 armor-piercing shell due to the weapon's increased muzzle velocity and improved shell penetration; increasing the armor would have increased weight and reduced speed, a compromise that the General Board was not willing to make.
The Iowas' torpedo defense was based on the South Dakotas' design, with some modifications. The system is an internal "bulge" that consists of four longitudinal torpedo bulkheads behind the outer hull plating with a system depth of 17.9 feet (5.46 m) to absorb the energy of a torpedo warhead. The extension of the armor belt to the triple bottom, where it tapers to a thickness of 1.62 inches (41 mm), serves as one of the torpedo bulkheads and was hoped to add to protection. The torpedo bulkheads were designed to elastically deform to absorb energy and several compartments were liquid loaded in order to disrupt the gas bubble. The outer hull was intended to detonate a torpedo, with the outer two compartments absorbing the shock and with any splinters or debris being stopped by the lower armored belt and the empty compartment behind it. However, the Navy discovered in caisson tests in 1939 that the initial design for this torpedo defense system was actually less effective than the previous design used on the North Carolinas' due to the rigidity of the lower armor belt causing leakage into adjacent compartments. To mitigate the effects, the welded joint between the lower armor belt and the triple bottom was reinforced with buttstaps, and the liquid loading system was altered so that the two outermost compartments were filled, while the two inboard compartments were void spaces. Iowas' system was also improved over the South Dakotas' through closer spacing of the traverse bulkheads, greater thickness of the lower belt at the triple bottom joint, and increased total volume of the “bulge". The system was further modified for the last two ships of the class, Illinois and Kentucky, by eliminating knuckles along certain bulkheads; this was estimated to improve the strength of the system by as much as 20%.
Based on costly lessons in the Pacific theater, concerns were raised about the ability of the armor on these battleships to withstand aerial bombing, particularly high altitude bombing using armor piercing bombs. Developments such as the Norden bombsight further fueled these concerns. While the design of the Iowas was too far along to adequately address this issue, experience in the Pacific theater eventually demonstrated that high altitude unguided bombing was ineffective against maneuvering warships.
Aircraft (1943–69)
When they were commissioned during World War II, the Iowa-class battleships came equipped with two aircraft catapults designed to launch floatplanes. Initially, the Iowas carried the Vought OS2U Kingfisher and Curtiss SC Seahawk, both of which were employed to spot for the battleship's main gun batteries – and, in a secondary capacity, perform search-and-rescue missions.
By the time of the Korean War, helicopters had replaced floatplanes and the Sikorsky HO3S-1 helicopter was employed. New Jersey made use of the Gyrodyne QH-50 DASH drone for her Vietnam war deployment in 1968–69.
